Chuck size | 5" |
Max. machining diameter | Φ180 mm |
Max. machining length | 204 mm |

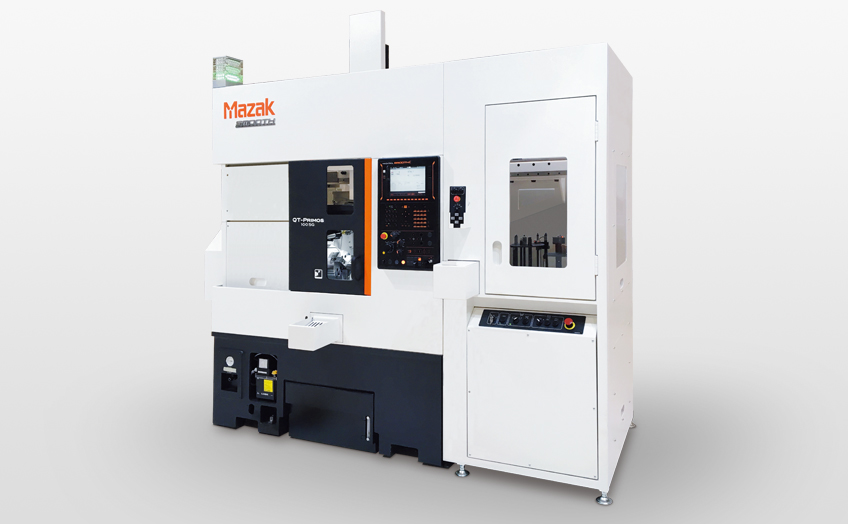

CNC Turning Center

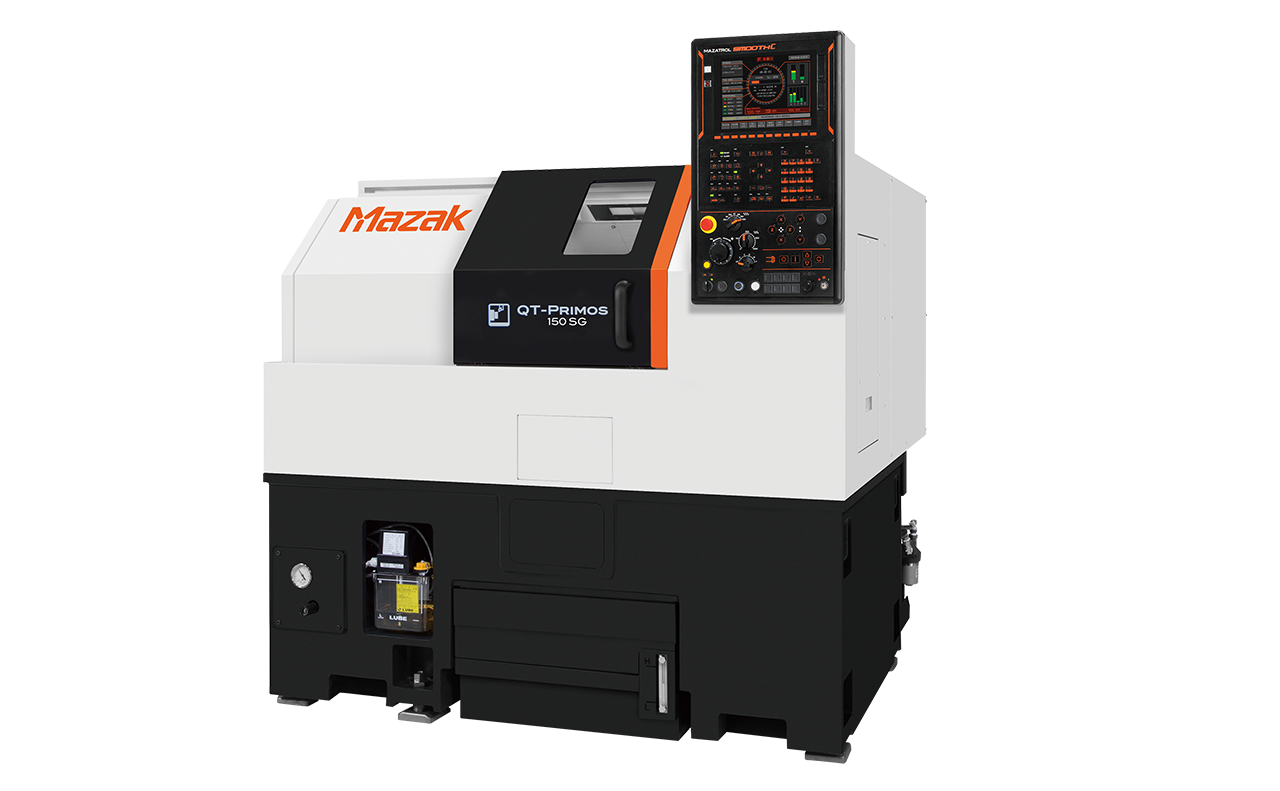

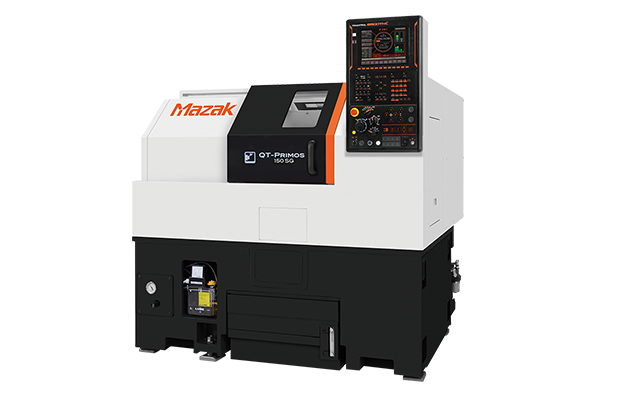

QT-PRIMOS
- Built-in motor spindle for high-accuracy, high-speed machining
- Less floor space
- Compact automation options to suit your production style
Rigid spindle for unsurpassed machining performance
Equipped with high-torque built-in motor spindle
The built-in motor spindle uses no gears or belts which can cause vibration during machining, which significantly improves roundness and surface roughness. This also eliminates the need to adjust belt tension and replace belts due to wear.
8 position turret for quick indexing

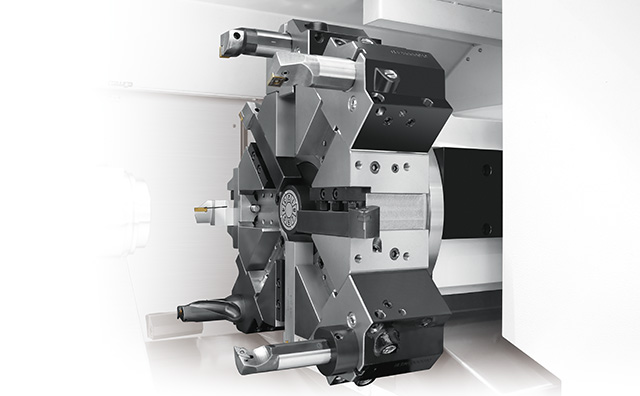

8 Position Drum Turret
The QT-PRIMOS series is equipped with a servo motor driven, drum turret that features high-speed, non-lift turret indexing
QT-PRIMOS 50 SG, QT-PRIMOS 100 SG
O.D. turning face tool | 20 mm × 20 mm |
Boring bar | Φ20 mm / Φ25 mm (selectable) |
Indexing time | 0.2 sec |

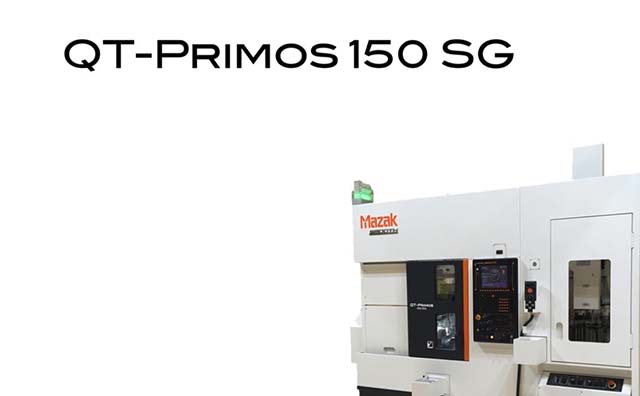

QT-PRIMOS 150 SG
O.D. turning face tool | 25 mm × 25 mm |
Boring bar | Φ32 mm |
Indexing time | 0.2 sec |
Compact design and easy maintenance
Space-saving design

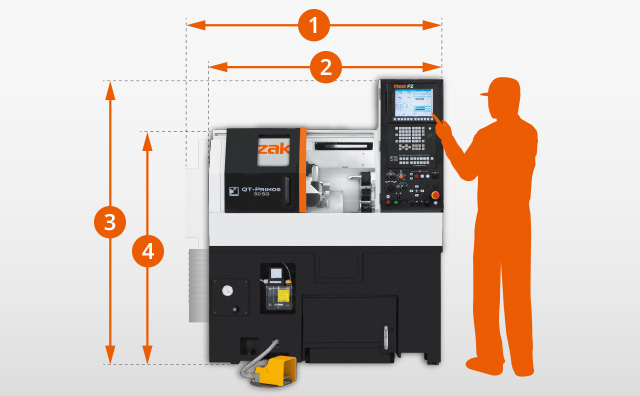

Compact design improves operator workability. Productivity per floor area is improved.
1 | QT-PRIMOS 50 SG, 100 SG | 1575 mm |
QT-PRIMOS 150 SG | 1850 mm | |
2 | QT-PRIMOS 50 SG, 100 SG | 1395 mm |
QT-PRIMOS 150 SG | 1600 mm | |
3 | QT-PRIMOS 50 SG, 100 SG, 150 SG | 1700 mm |
4 | QT-PRIMOS 50 SG, 100 SG, 150 SG | 1435 mm |
- * Specifications vary depending on machine dimensions
No maintenance required on left / ride sides of the machine

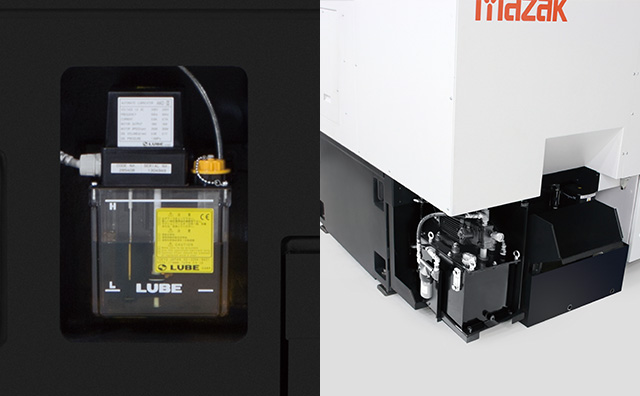

Areas for daily maintenance are designed to be accessible from the front and rear side. It is also useful for installing machines side by side. The lubrication oil tank is located in front of the machine. The other items requiring daily checking are also located in front and back of the machine for easy maintenance when the machines are located in a production line.
Quick and compact automation options to suit your application
A single second makes a difference in manufacturing.
The automation system of QT-PRIMOS reduces cycle time through rapid axis travel and acceleration/deceleration.
Accurate and precise positioning ensures reliable workpiece attachment and removal.

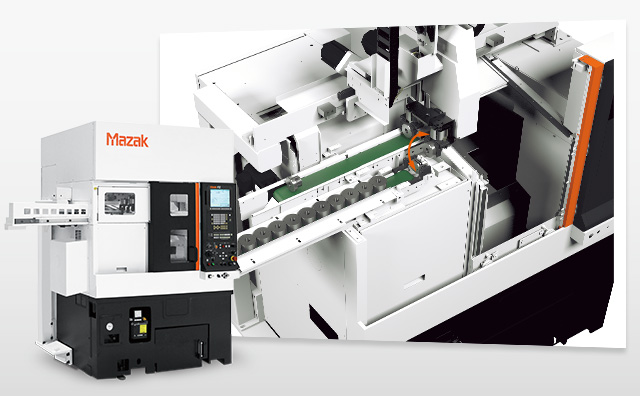

Quick Loader (Compact floor space automation system)
This automated system is ideal for mass production of a small variety of products. Automation is possible in the same floor space as standard machines. Continuous machining is possible due to automatic loading / unloading. Work output conveyor and work input chute are on the left side of the machine for continuous operation.
Gantry Loader
This automated system is ideal for mass production of a large variety of products. Turn-over Unit (option) can be attached to machines per request. The material / finished workpiece can be loaded on the pallet up to a height of 350 mm to increase unmanned operation. Teaching for gantry loader operation can also be easily done.
Selectable CNC systems

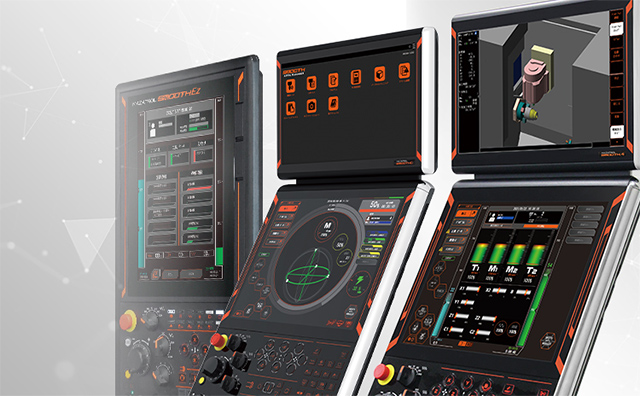

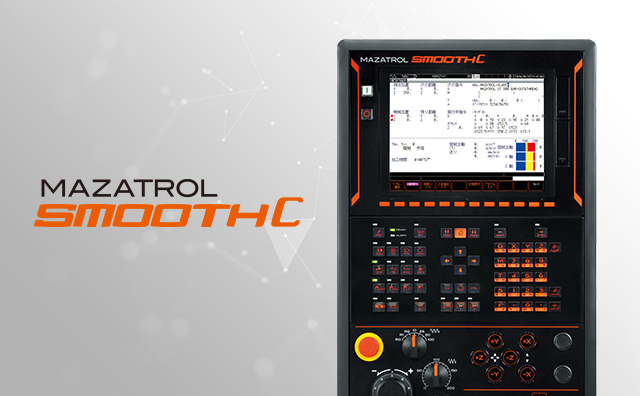

MAZATROL SmoothC
Compatible with both G-code (EIA/ISO) programs and MAZATROL (conversational programs). Its user-friendly interface allows swift programming of operations.

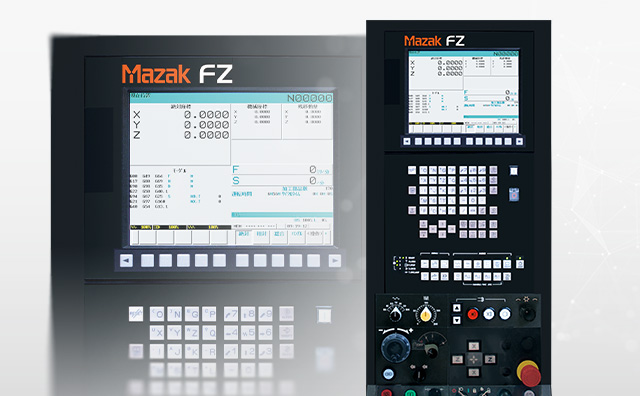

MAZAK FZ
G-code (EIA / ISO) programming functions are combined with Mazak's unique and convenient menus for better usability.
Reference Video
QT-PRIMOS 50 SG
QT-PRIMOS 100 SG
Chuck size | 6″ |
Max. machining diameter | Φ180 mm |
Max. machining length | 200 mm |
QT-PRIMOS 150 SG
Chuck size | 8″ |
Max. machining diameter | Φ250 mm |
Max. machining length | 264 mm |
