5-Axis Machining Centers

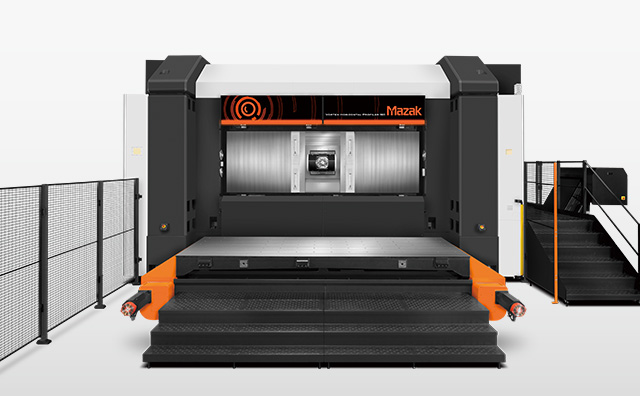

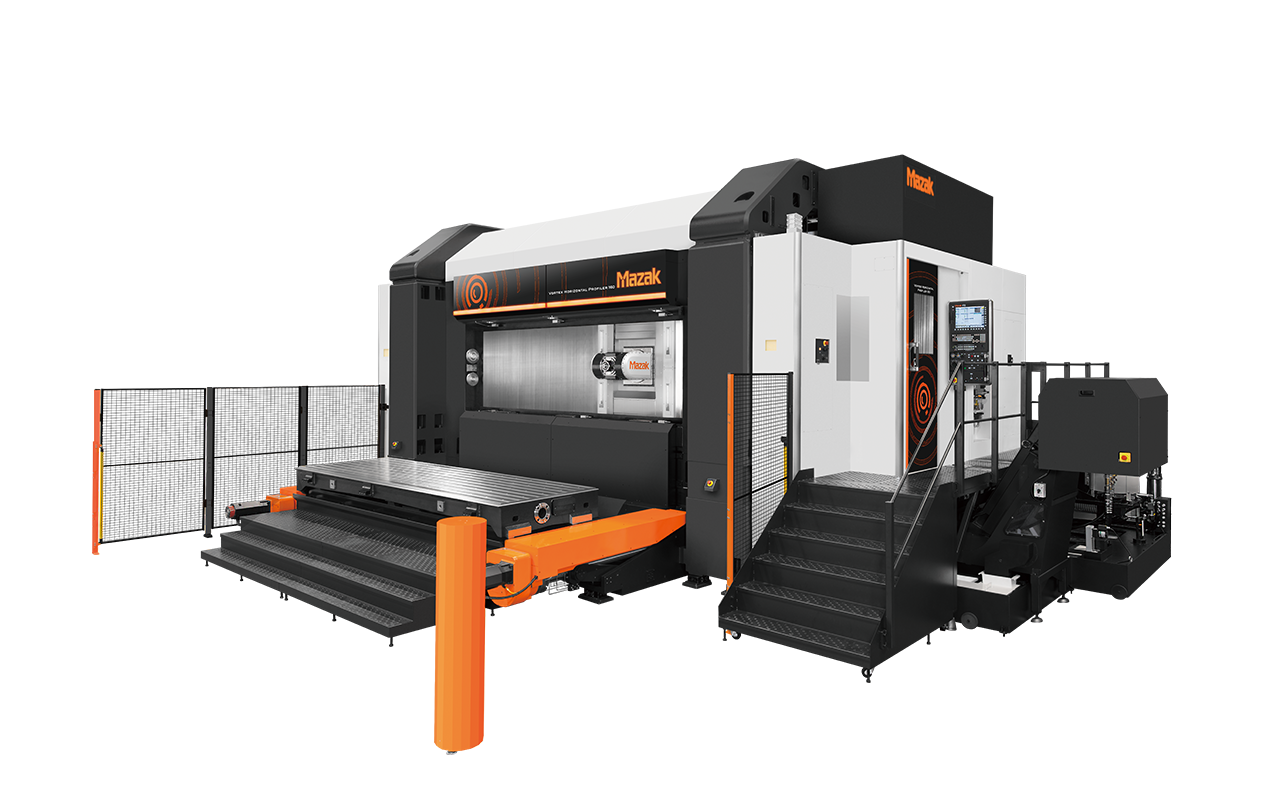

VORTEX HORIZONTAL PROFILER

Simultaneous 5-axis controlled horizontal machining centers ideal for large aerospace aluminum components

Box construction integrating the base, column, and table and thermally symmetrical spindle / column construction ensures high accuracy machining.
Powerful, high speed built-in motor spindle for high productivity
90° table tilt system for easy setup and changeover

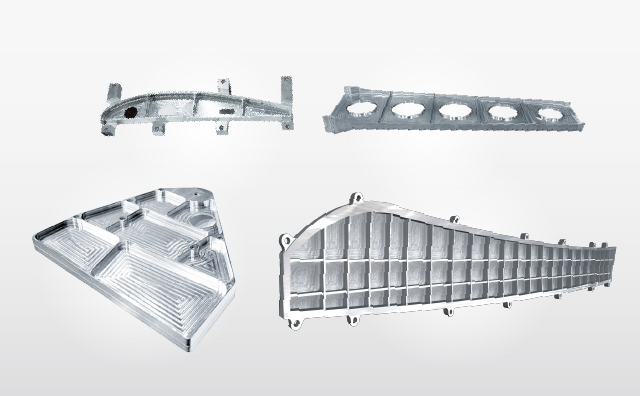

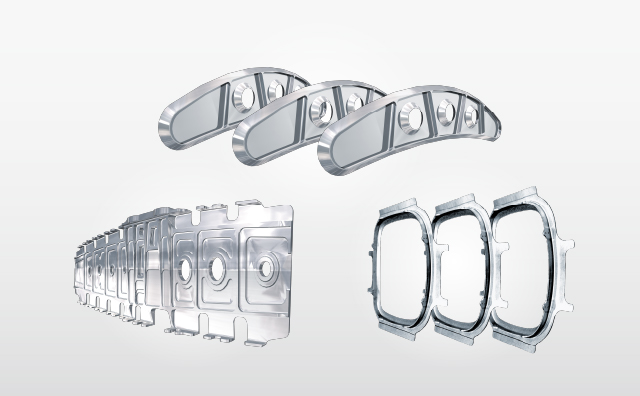

Applications

With a 4000 mm × 1250 mm wide table that has a maximum loading weight of 3000 kg, this machine is ideal for machining applications for aircrafts, especially structural components of wing systems such as wing ribs.

Designed for high speed, high accuracy simultaneous 5-axis machining

Machine construction ensures stable machining accuracy in the X-axis direction from the bottom to top of the machine table
The large table capacity allows the machining of large right- and left-hand components in the same machine setup.

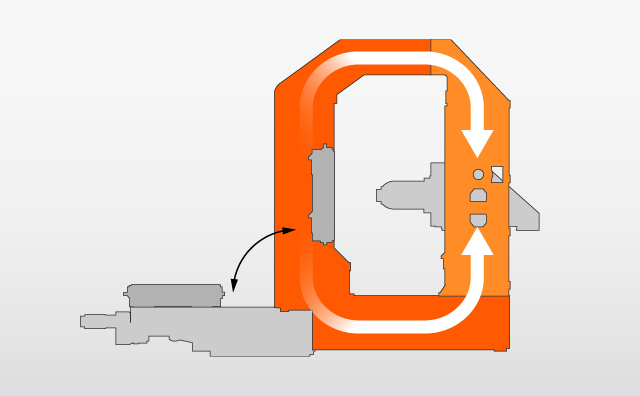

Box construction integrating the base, column, and table

Fully closed force loop construction and integrated robust table provides exceptional rigidity to ensure stable high machining accuracy.

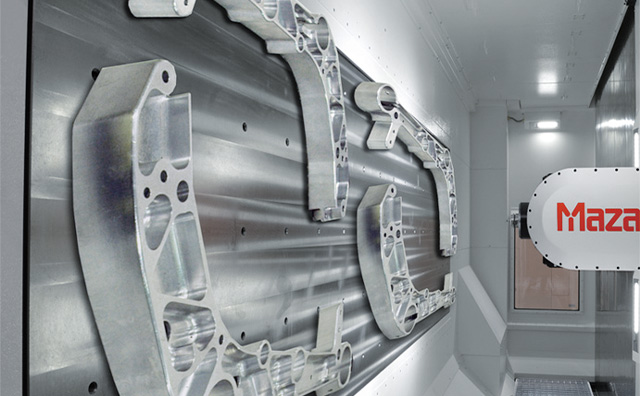

Tilting table for large workpieces

For convenient workpiece loading / unloading, the table is horizontal for workpiece setup and tilted 90 degrees for machining.

1: Box construction 2: Tilting Table

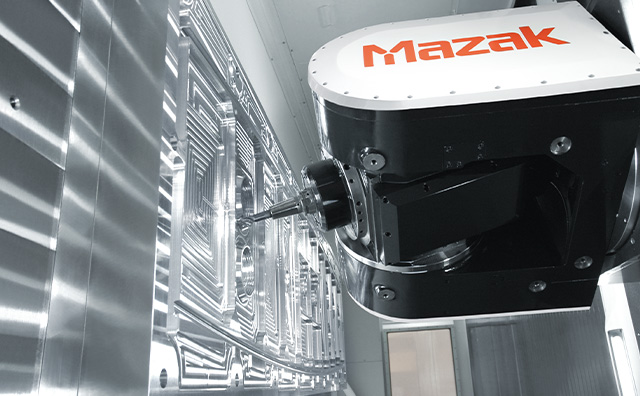

Thermally symmetrical spindle / column

Different from unstable cantilever construction, the thermally symmetrical spindle / column holds the headstock on both the right and left sides to maintain consistent high machining accuracy.

High accuracy table positioning

Tilting table repetition accuracy repeatability is within 13 μm (X / Y / Z directions).

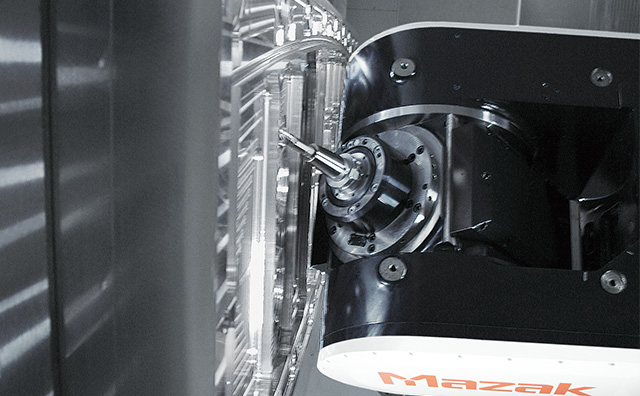

High speed, high output spindle for high efficiency machining of aluminum components

30000 min^-1 120 kW built-in motor spindle

The built-in motor spindle design helps minimize vibration during high speed operation. This ensures exceptional surface finishes and maximum tool life.

Standard spindle

Output (Cont. rating): 120 kW
Torque (Cont. rating): 42.4 N・m

High torque spindle (option)

Output (Cont. rating): 120 kW
Torque (Cont. rating): 83 N・m
Optional only for VORTEX HORIZONTAL PROFILER 160 XP.

Advanced coolant / chip disposal technology

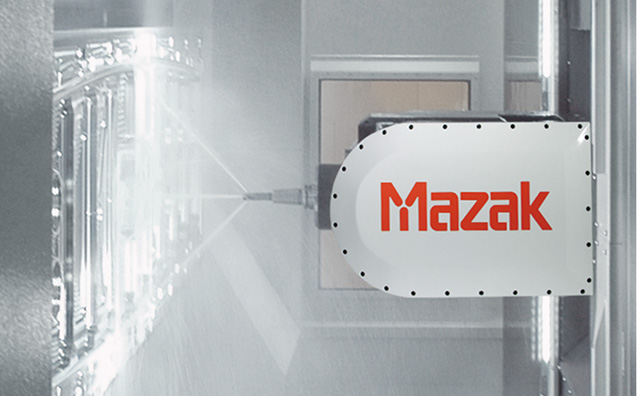

1.5 MPa (218 PSI) high-pressure coolant through spindle (standard)

High-pressure coolant through the spindle is supplied though tool passages directly to the tip of the cutting tool.
Higher-pressure coolant systems (3.5 MPa (508 PSI) / 7.0 MPa (1015 PSI)) are optionally available.

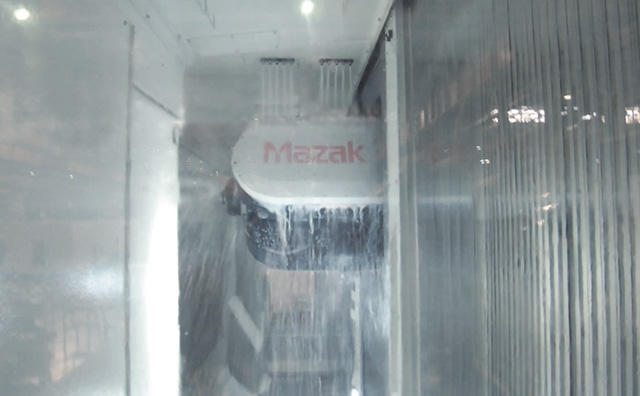

Headstock cleaning coolant (standard)

The standard coolant nozzles on the top cover remove chips from the headstock during machining.

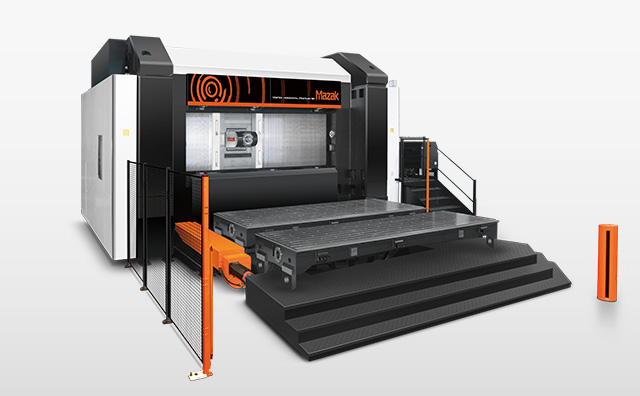

2 table changer and large capacity tool magazine long-hour automatic operation

The compact, rotary type 2 table changer makes it possible to set up the next workpiece during machining. It will be of support for long-hour automated operations.

Environmentally friendly

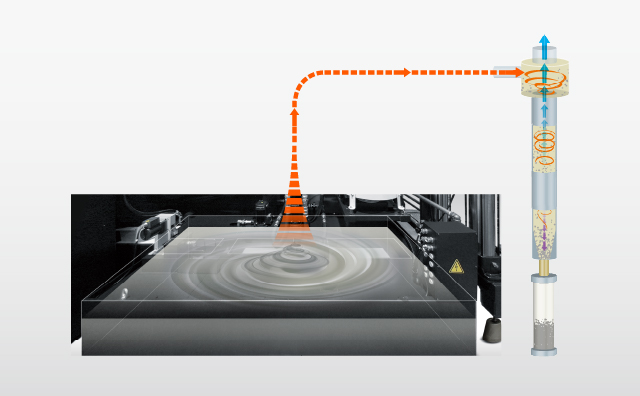

Clean Coolant System

The internal wall surfaces of the large volume coolant tank have a coating that prevents small machined chips from adhering. The coolant tank has a coolant jet that makes a vortex in the center so that small machined chips will not settle in the tank. These features allow the coolant to be smoothly sent to the coolant filter, where more than 98% of particles larger than 10 μm (0.00039”) are removed by the dedicated cyclone filter. In addition, the maintenance-free structure significantly reduces the time required to clean filters and tanks.

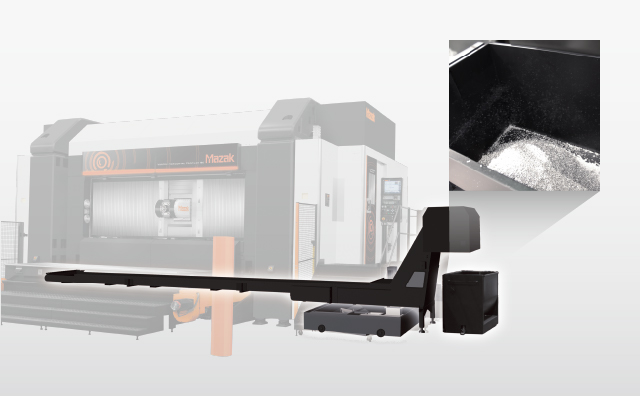

Coolant tank separated from conveyor

The tank and conveyor are separated and arranged in an upper and lower position to discharge chips more quickly while reducing the amount of coolant carried out by the conveyor. Tanks can be easily moved and maintained.

Reference Video

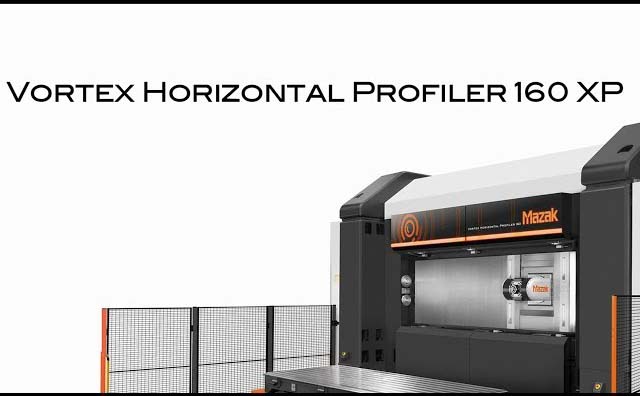

VORTEX HORIZONTAL PROFILER 160 XP : wing rib machining

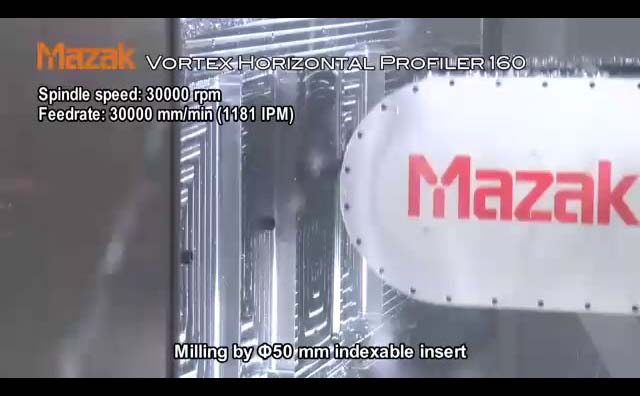

VORTEX HORIZONTAL PROFILER 160 : Aircraft wing rib machining
