5-Axis Machining Centers

VARIAXIS j

Multi-surface, simultaneous 5-axis vertical machining center

Rigid trunnion table design supports table on both sides for heavy duty machining. High-accuracy machining is possible
0.0001° indexing increment for a variety of multiple-surface machining (simultaneous 4-axis + A-axis indexing) [j-500].
Simultaneous 5-axis control for 3-dimensional curved surface machining [j-500/5X].
Excellent accessibility to the table and magazine in front of machine for easier operation.

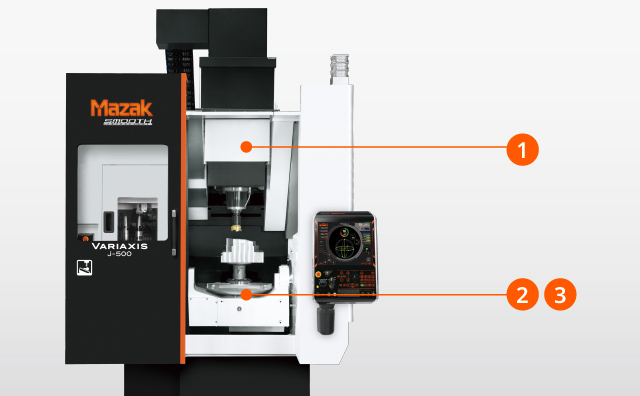

Machine structure for high-accuracy machining

1: Linear roller guides utilized on the X-, Y- and Z-axis

The linear roller guides on the X-, Y- and Z-axis utilized by the VARIAXIS j series provide high-accuracy positioning.
Additionally, with their high rigidity and considerably lower friction, high speed feedrates can be used over a wide range of machining, from heavy-duty to high speed cutting.

2: High rigidity table

High rigidity tilting rotary table for high speed and high accuracy machining.

3: Rotary axis equipped with roller gear cams

The VARIAXIS j series tilt and rotary tables use roller gear cams for superior accuracy, rigidity, and durability. Elimination of backlash ensures high accuracy and high efficiency machining.

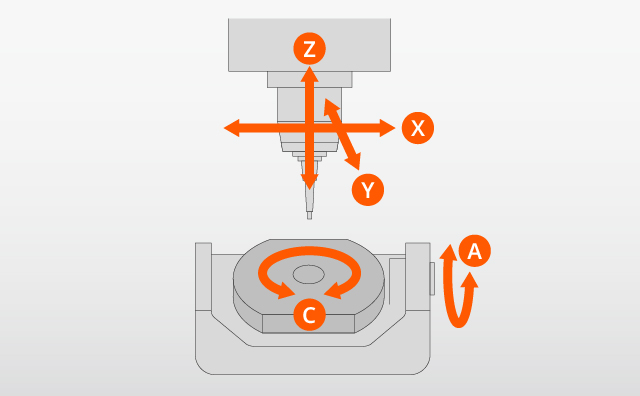

Axis configurations designed for various multiple-surface machining and 5-axis machining

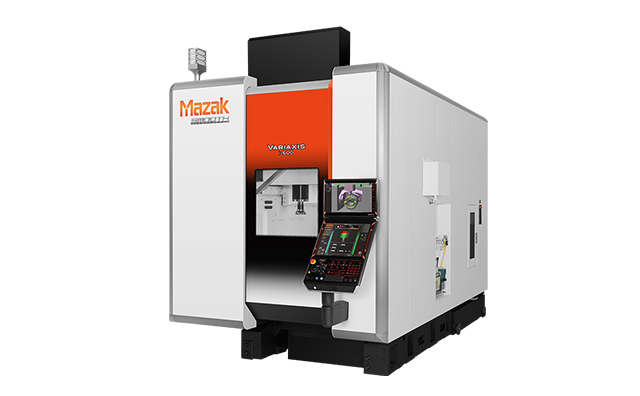

Multi-surface machining: VARIAXIS j-500

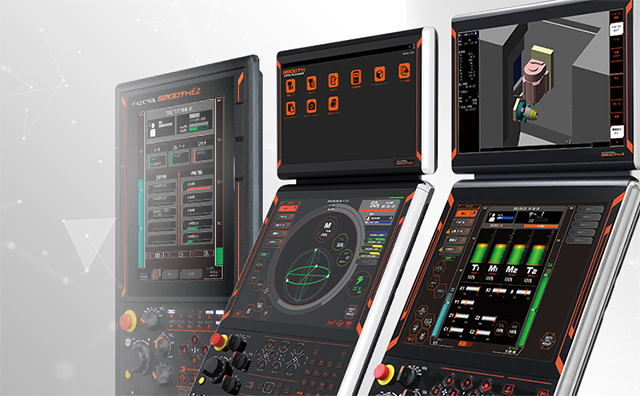

(CNC: MAZATROL SmoothG)

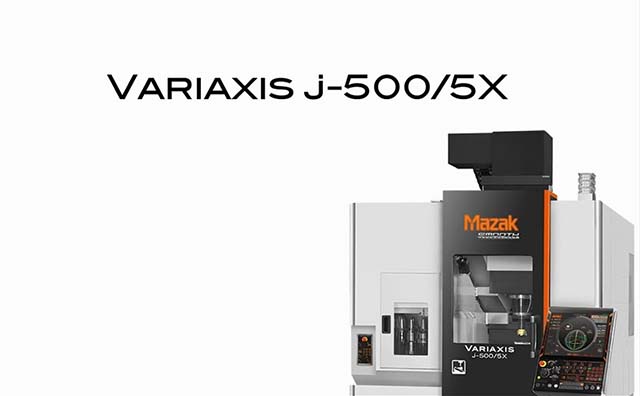

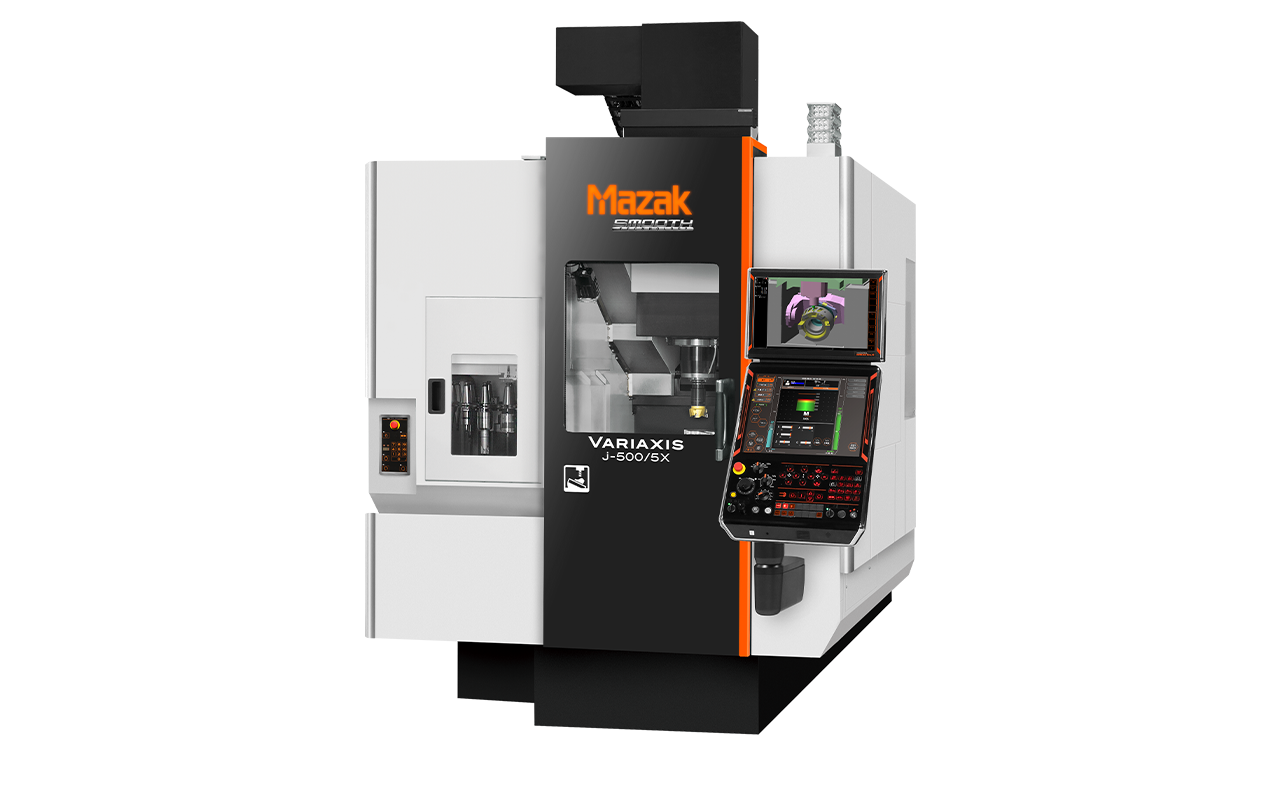

Simultaneous 5-axis machining: VARIAXIS j-500/5X　
(CNC: MAZATROL SmoothAi)

High-rigidity, high-speed spindle for a wide variety of materials

Standard spindle

maximum spindle speed	12000 min^-1 (rpm)
Output [40% ED]	11 kW (15 HP)
Torque [40% ED]	65.1 N・m

High speed spindle (Optional)

Max. spindle speed	18000 min^-1 (rpm)
Output [40% ED]	15 kW (20 HP)
Torque [40% ED]	59.7 N・m

Applications

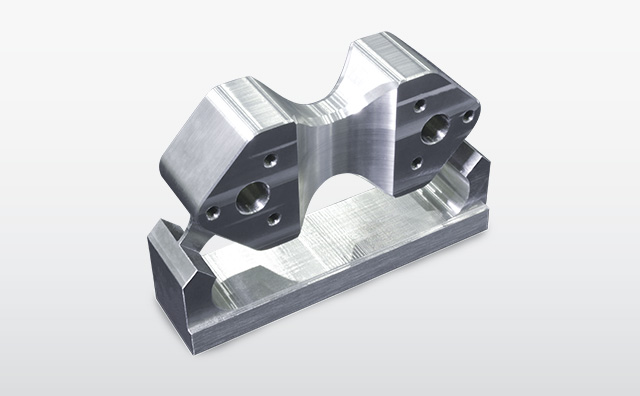

Aerospace component
Fastener

Food logistics component

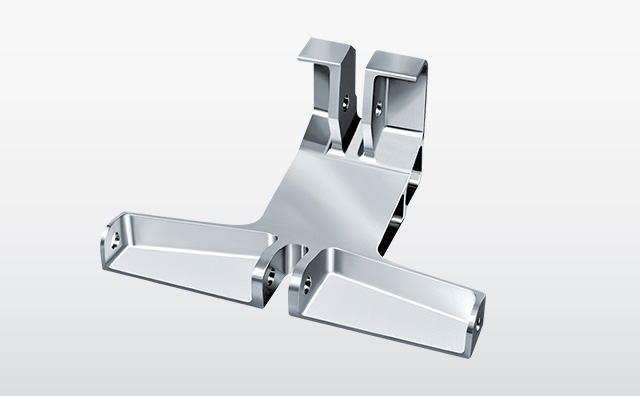

Bracket

General industry component

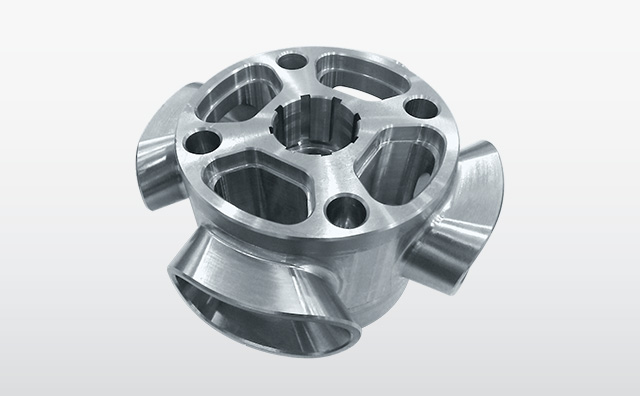

Blower

Automotive component

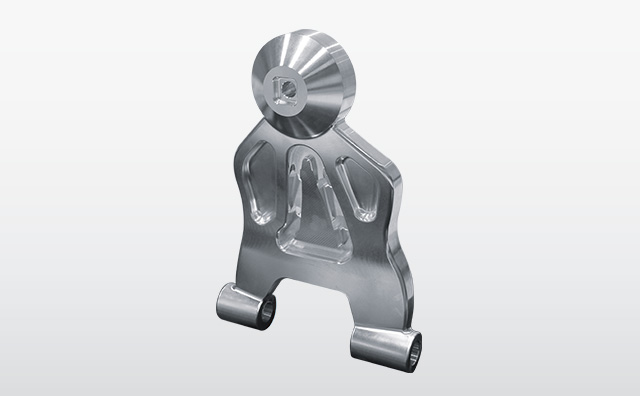

Control arm

Stable machining accuracy over long periods of operation

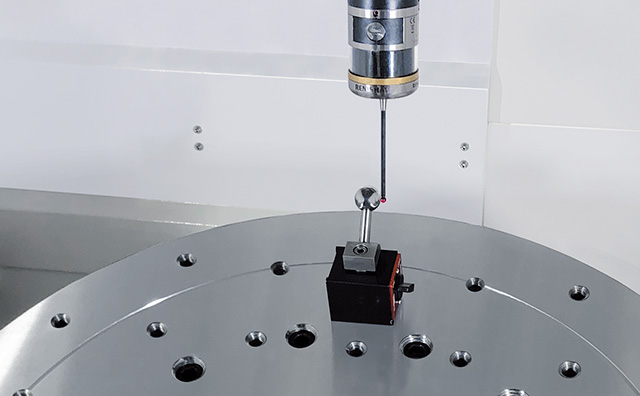

High-Accuracy 5-axis Calibration MAZA-CHECK

Position misalignment and incline of the rotary axis can automatically be measured and compensated to realize high accuracy 5-axis machining.
In addition to offsetting position deviation traveling parallel to the linear axis, angular deviation due to tilt direction can also be corrected.

* |Wireless touch probe RMP600 is optional equipment.
* |Optional function for VARIAXIS j-500.

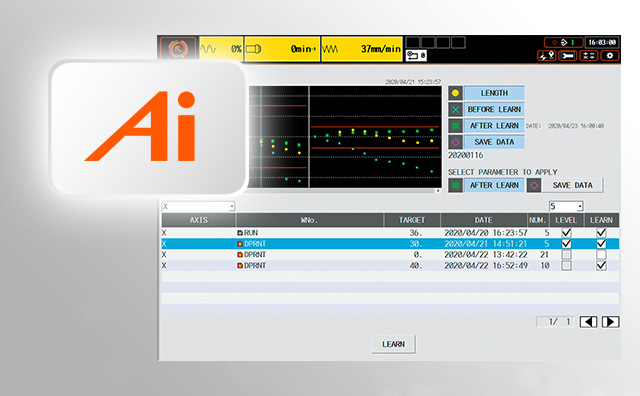

Ai Thermal Shield

Based on spindle speed and temperature of the machine, Ai Thermal Shield suppresses changes in the cutting edge position. It stabilizes continuous machining accuracy through meticulous machine control that takes into account temperature changes, machine position, coolant ON/OFF, and other factors. Furthermore, by accumulating and learning data from subsequent measurements, thermal displacement compensation can be optimized for each machining environment.

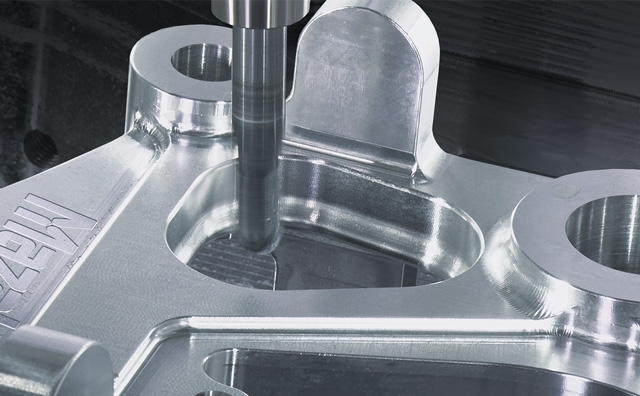

1: machining

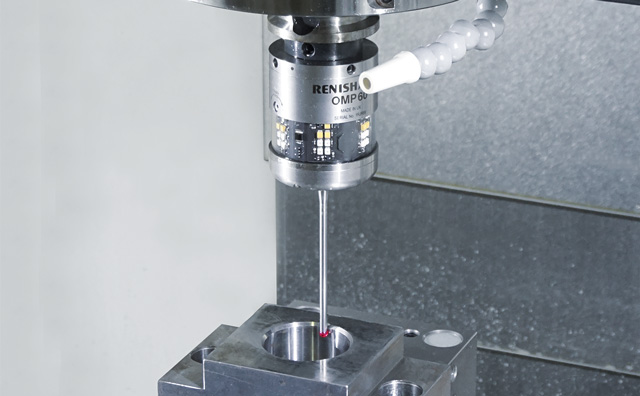

2: Workpiece Measurement

3: Optimization Simulation (Back to 1)

machining
Workpiece Measurement
Optimization Simulation

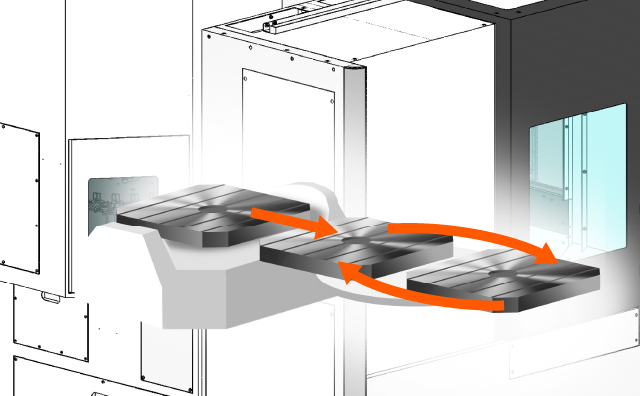

2-pallet changer (Optional)

The VARIAXIS j series offers the 2-pallet changer as an option.
The next workpiece can be setup during the machining of the current workpiece for higher productivity.

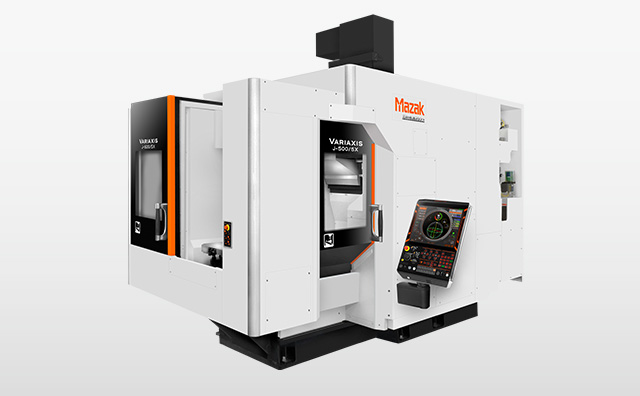

VARIAXIS j-500/5X with 2-pallet changer

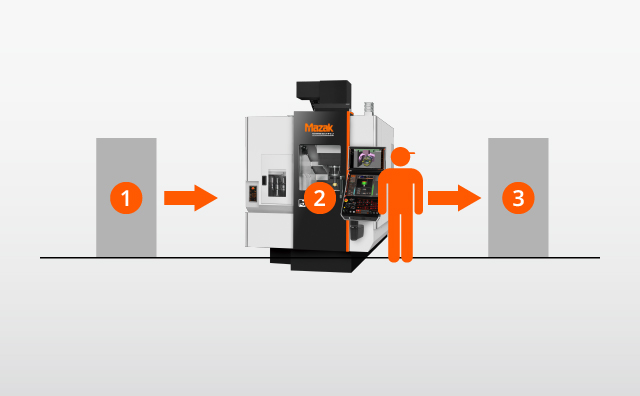

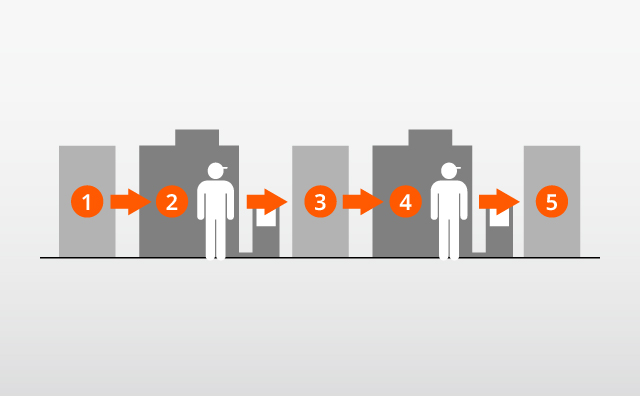

Large reduction of total production time

The VARIAXIS j-500 series incorporates all machining processes from raw material input through final machining – in just one machine. It provides the ability to reduce production lead time, improve machining accuracy, reduce floor space and initial cost, lower operating expenses, reduce operator requirements and to improve the work environment. As a result, it not only streamlines production, it also improves overall management.
