| Pallet size | Φ600 mm × 500 mm |
| Tool shank (standard) | BT40 |
| Max. spindle speed | 12000 min-1 (rpm) |
| Max. workpiece size | Φ730 mm × 450 mm |
5-Axis Machining Centers

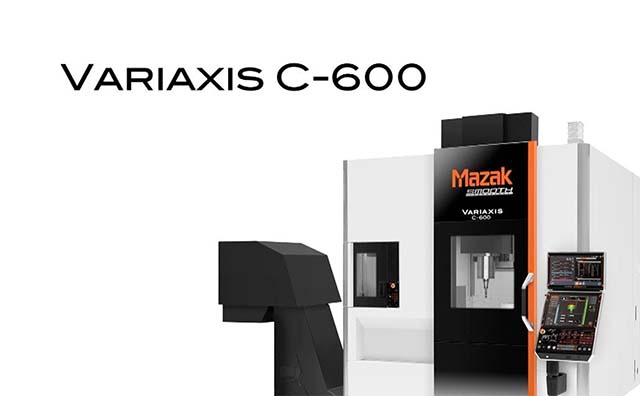

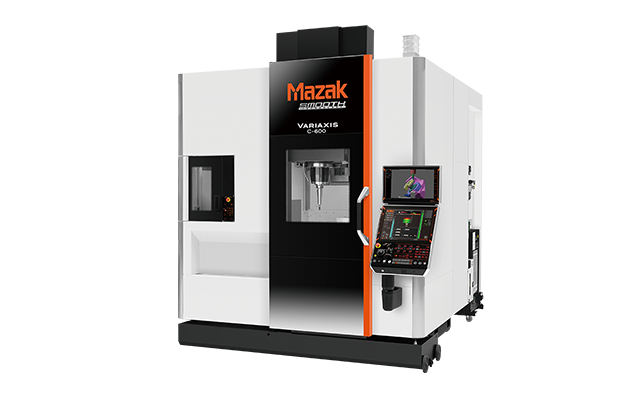

VARIAXIS C
Simultaneous 5-axis vertical machining center
- A wide range of spindles meet various machining requirements, including high-speed machining of aluminum and machining of difficult-to-machine materials such as stainless steel, nickel, and titanium
- Wide variety of automation equipment, including a 2-pallet changer, robot, and hydraulic / pneumatic fixtures
- MAZATROL SmoothAi for AI, digital twin, and automation
Selectable spindle for machining workpieces
Variety of spindle selections for matching material properties
We offer a lineup of high rigidity and high speed spindle that can perform heavy duty machining of steel as well as high speed machining of non-ferrous materials such as aluminum.. You can select the optimal spindle to suit your workpiece.
| Standard | High-torque* | High-speed* | ||
|---|---|---|---|---|
| Spindle speed | 12000 min-1 | 15000 min-1 | 18000 min-1 | 20000 min-1 |
| Output (40% ED) | 11 kW (15 HP) | 46 kW (62 HP) | 30 kW (40 HP) | 42 kW (56 HP) |
| Torque (40% ED) | 70 N・m | 200 N・m | 105 N・m | 161 N・m |
| Tool shank | BT-40 / BIG-PLUS No.40* / HSK-A63* | |||
- * Option
Machining example (test results)

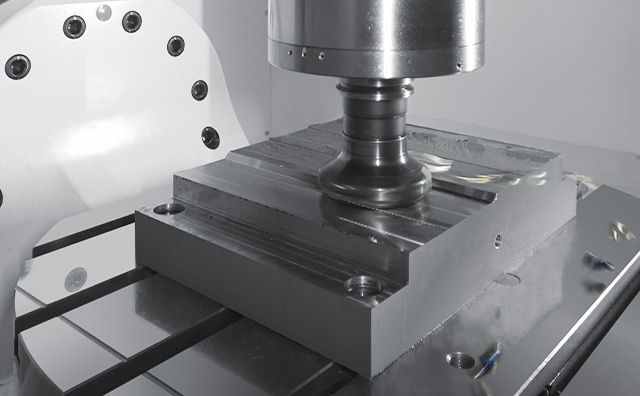

15000 min -1 high-torque spindle
Φ80 mm face mill (6 teeth)
Speed: 995 min -1
Feedrate: 1552 mm/min
Depth of cut: 5.8 mm
Material: S45C
Material removal rate: 581 cm³/min

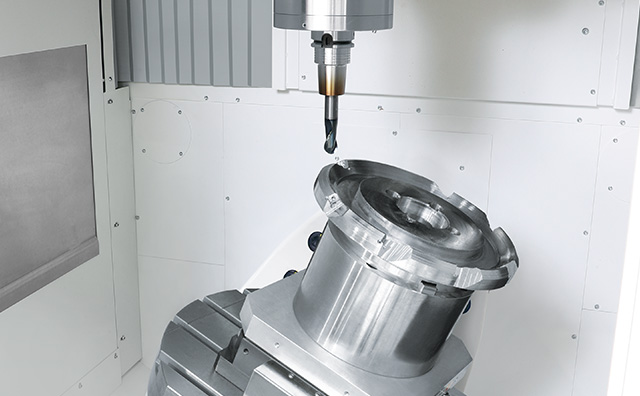

High rigidity table

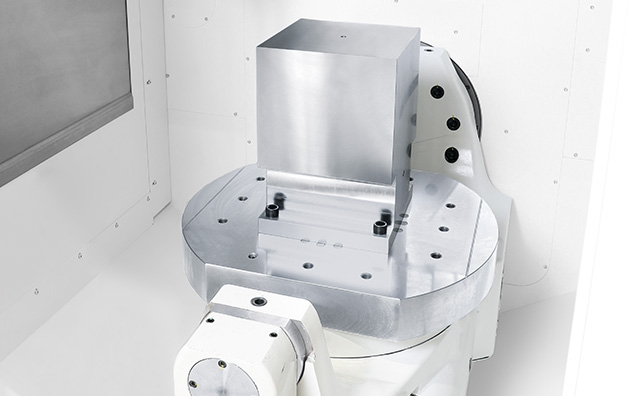

The tilting rotary table is supported at two ends. High-speed, high-precision, and high-rigidity machining is achieved by utilizing roller gear cams in the B-axis and C-axis to eliminate backlash.
High rigidity structure and MAZATROL SmoothAi for high-accuracy machining
High accuracy 5-axis calibration MAZA-CHECK

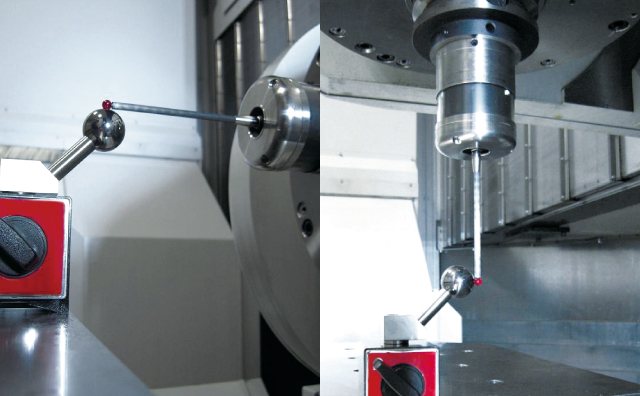

Position misalignment and incline of the rotary axes can automatically be measured and compensated to realize high accuracy 5-axis machining.
The centers and tilts of rotary axes can be automatically measured and compensated as well as linear axes.
- * Wireless touch probe RMP600 is an optional equipment.

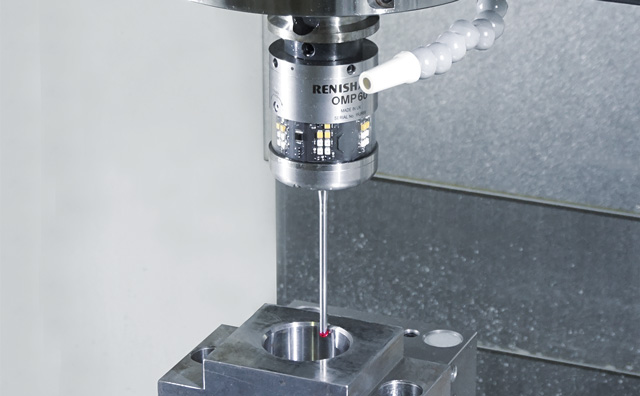

Ai Thermal Shield

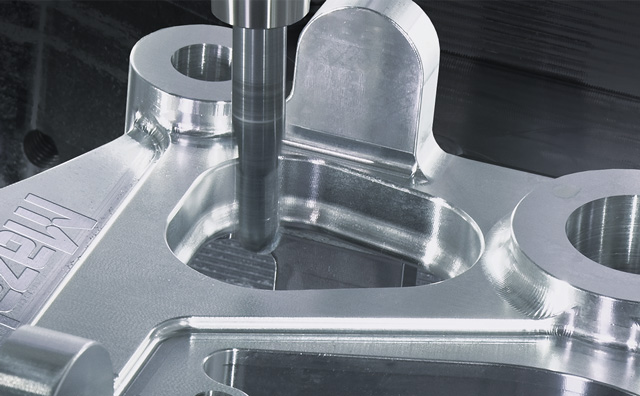

Based on spindle speed and temperature of the machine, Ai Thermal Shield suppresses changes in the cutting edge position. It stabilizes continuous machining accuracy through meticulous machine control that takes into account temperature changes, machine position, coolant ON/OFF, and other factors. New algorithms have improved the accuracy of compensation. Furthermore, by accumulating and learning data from subsequent measurements, thermal displacement compensation can be optimized for each machining environment to stabilize machining accuracy.
- Machining
- Workpiece inspection
- Simulation
Smooth Ai spindle*

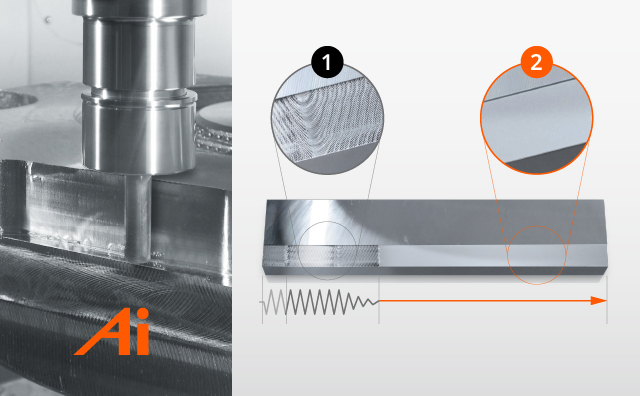

If chatter vibration occurs during milling, the vibration sensor and AI adaptive control automatically change the machining conditions to suppress the chatter vibration. With the AI, even a less-skilled operator can make adjustments easily in a short time.
* Option
Automated system best suited for multi-product processing
2-pallet changer*

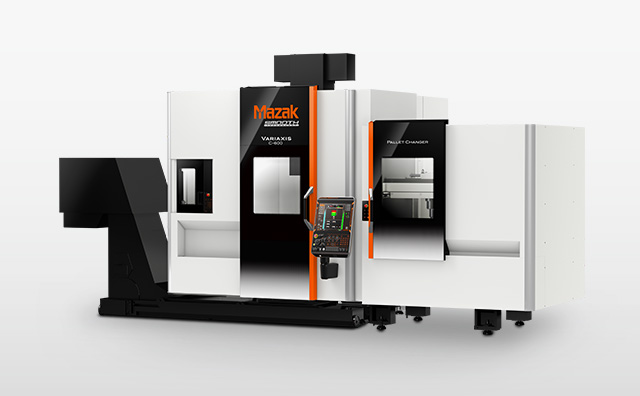

The optional 2-pallet changer allows you to load materials for the next processing step or setup during machining, improving productivity.
| VARIAXIS C-600 (2-pallet changer) | |
| Pallet size | 500 mm × 500 mm |
| Max. workpiece size | Φ730 mm × 450 mm |
| Max. load | 500 kg |
* Option
MPP (MULTI PALLET POOL)

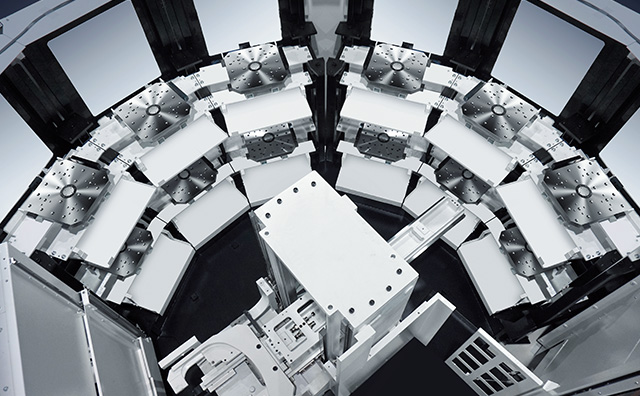

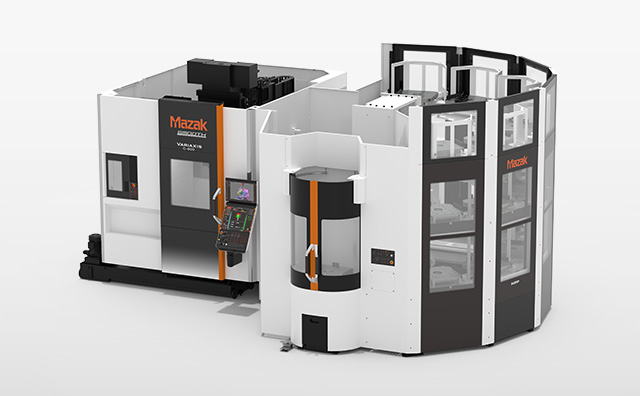

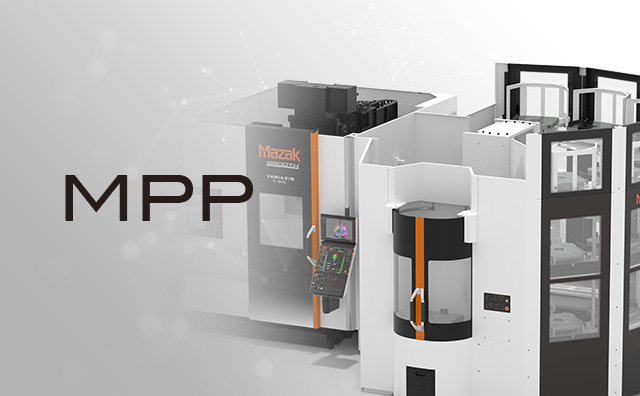

MPP (MULTI PALLET POOL) is a space-saving multi-stage pallet stocker system developed in response to the growing demand for automation. This automation system is ideal for small-lot, multi-product production and will dramatically improve productivity. The MPP is designed to be attached to the side of the machine, allowing access to the workpiece from two locations: the operator's door and the loading station.
Flexible pallet stocker capacity

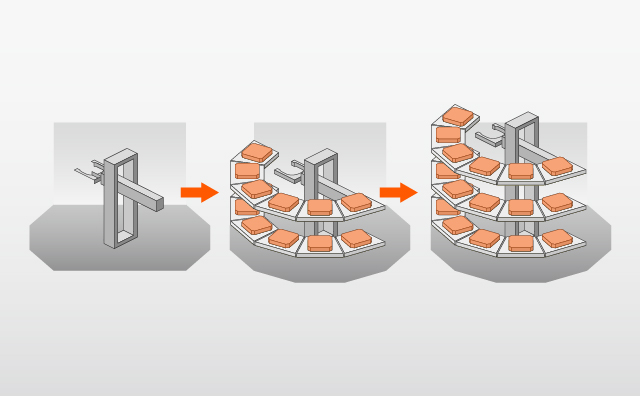

6, 12 and 18 pallet storage capacities are available after initial installation.
- 1. 6PC: 3 pallets × 2 levels
- 2. 12PC: 6 pallets × 2 levels
- 3. 18PC: 6 pallets × 3 levels
MAZATROL SmoothAi drives innovation for even higher productivity

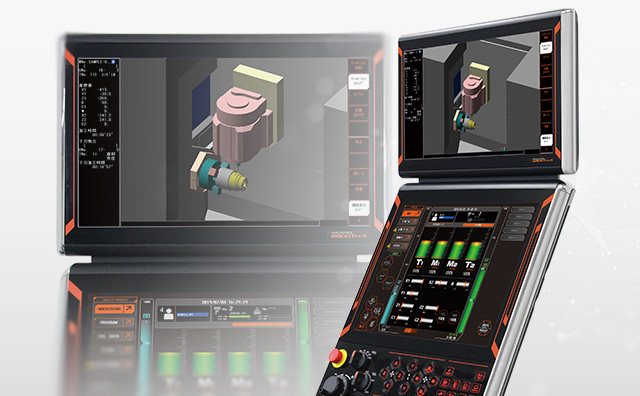

Innovative MAZATROL CNC system for higher productivity
MAZATROL SmoothAi provides unsurpassed productivity through even faster and higher precision control while elevating your production with AI and digital twin technology and advanced automation capabilities.
SMC PLUS

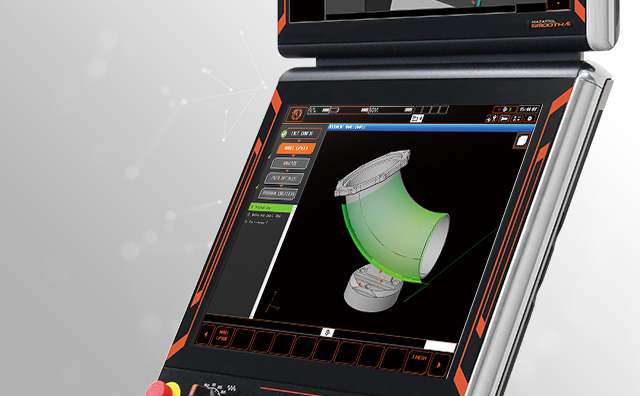

The cutting point of the EIA program are compared with the 3D model, and the command points are automatically corrected to reduce cutting residue and generate a smooth path trajectory, resulting in high-quality machining.
Smooth Machining Configuration

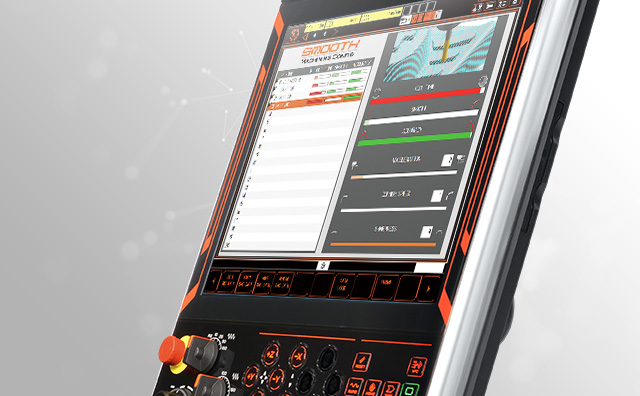

Machining features including cycle time, finished surface, and machining shape can be adjusted according to material requirements and machining methods. Since operator can easily adjust and change settings, it is especially effective for complex workpiece contours defined in small program increments.

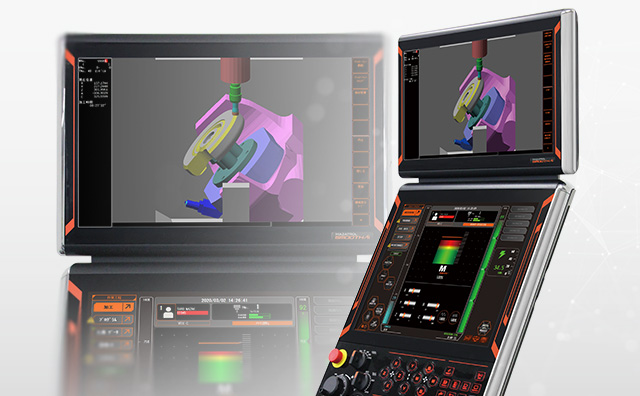

Digital Twin software for high productivity*
Digital twins recreate real-world factory environments in cyberspace, bringing about innovation in production. By utilizing digital twin software that is compatible with MAZATROL SmoothAi and leverages IoT technology, the machines in the factory can be virtually replicated, leading to significant efficiency improvements in the production process. It provides your office PC with the same environment as the actual MAZATROL SmoothAi. Virtual machine construction enables programming, editing, simulation, and analysis for multiple machines. The setting data of the actual machine is synchronized, which ensures the accuracy of the digital setup.
* Option
