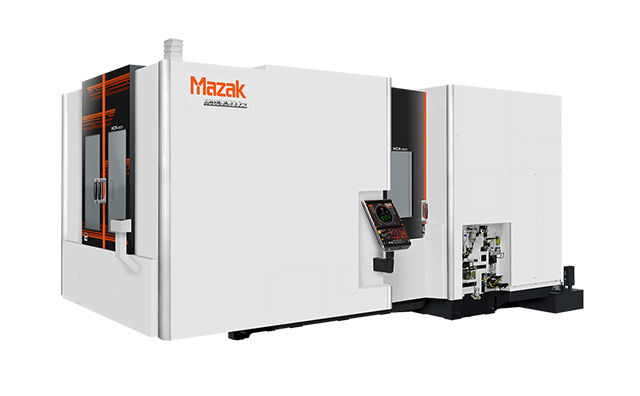

Horizontal Machining Center

HCN NEO

High-speed, high-precision horizontal machining center that achieves both high productivity and reduced environmental impact

Spindle specifications to meet a wide variety of machining requirements
Reduced non-operating time and improved productivity with NC rotary table (standard equipment).
Long-term, high precision machining made possible by high rigidity structure and state-of-the-art compensation technology
Wide variety of automation systems available
Improved environmental performance with energy-saving equipment

Pallet size

Largest X, Y, and Z-axis stroke and workpiece size in its class

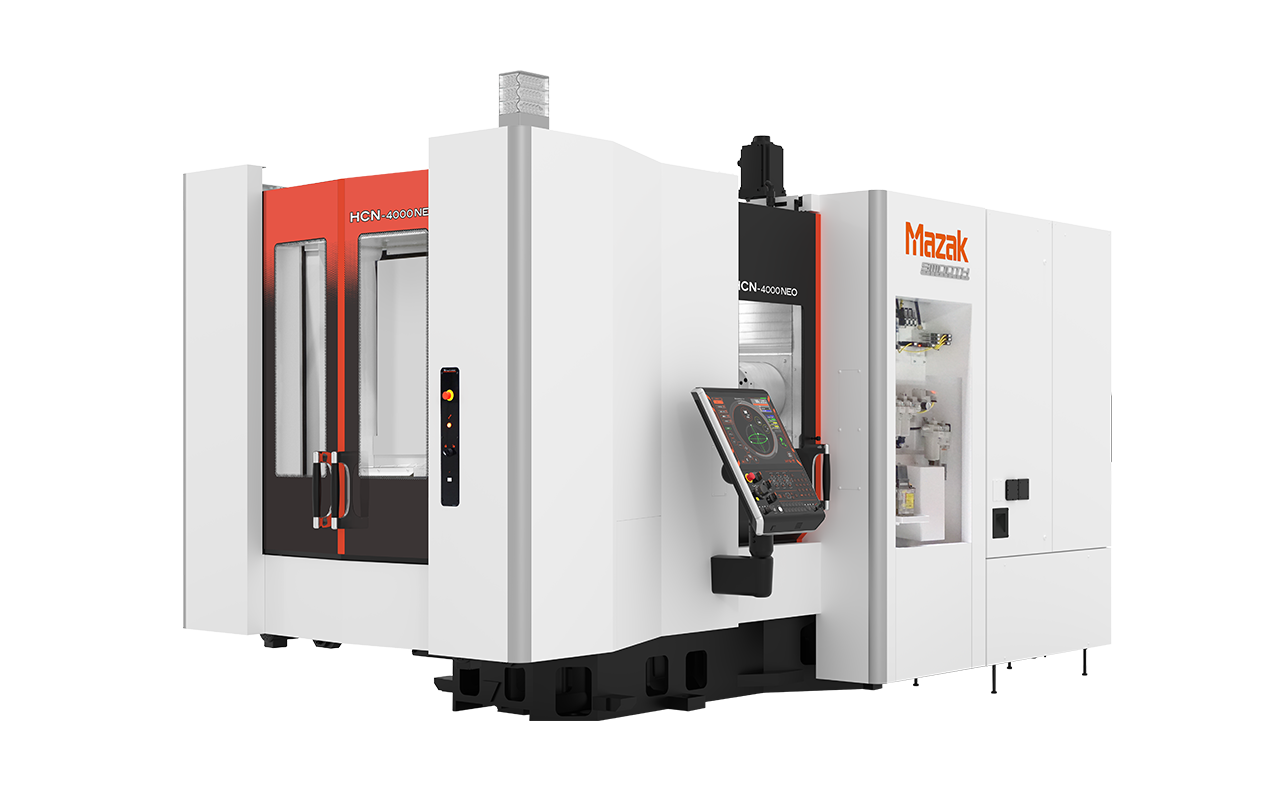

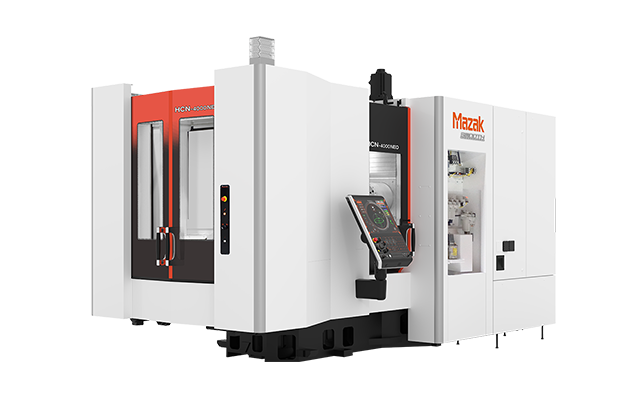

HCN-4000 NEO

Pallet Dimension	400 mm × 400 mm
X-axis / Y-axis / Z-axis stroke	560 mm / 640 mm / 640 mm

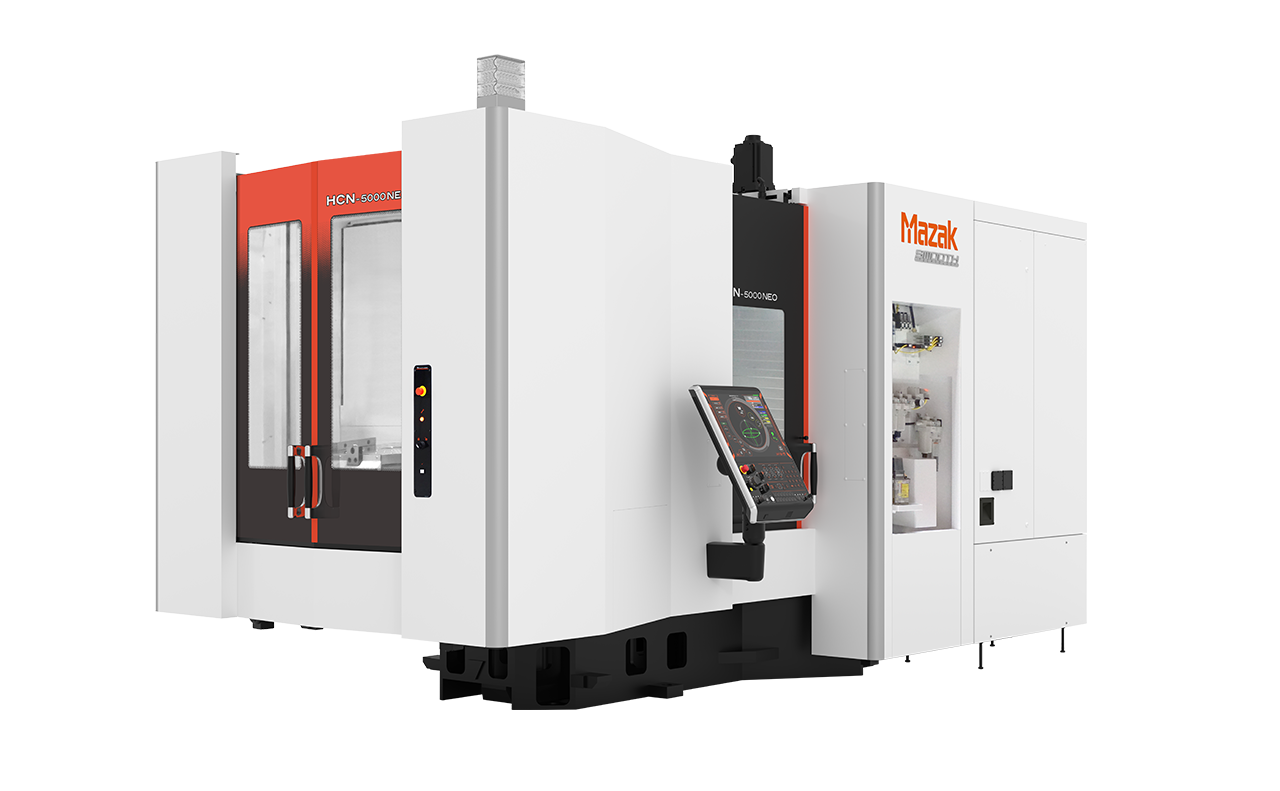

HCN-5000 NEO

Pallet Dimension	500 mm × 500 mm
X-axis / Y-axis / Z-axis stroke	730 mm / 730 mm / 800 mm

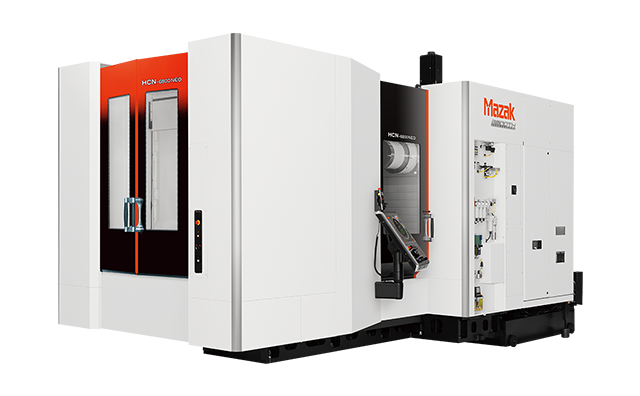

HCN-6800 NEO

Pallet Dimension	630 mm × 630 mm
X-axis / Y-axis / Z-axis stroke	1050 mm / 900 mm / 980 mm

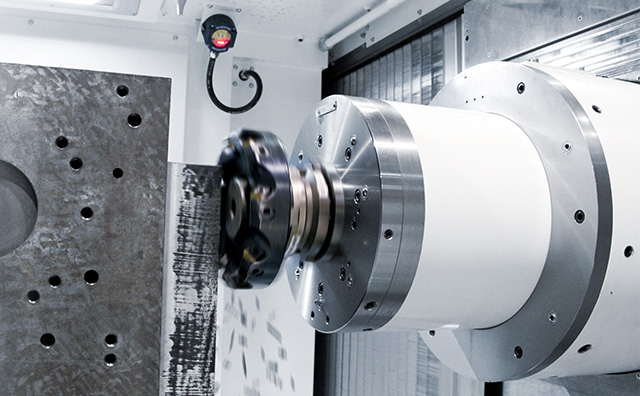

Spindle specifications to meet a wide variety of machining requirements

The high-rigidity spindle can perform heavy-duty machining of challenging materials and steel, and high-speed machining of non-ferrous materials such as aluminum.
High-speed and high-torque options are available.

HCN-4000 NEO / HCN-5000 NEO Tool shank: BT40

Standard specification: 12000 min ^-1

Spindle output
18.5 kW (25 HP) [40％ ED]
15 kW (20 HP) [Cont. rating]
Max. torque: 81.9 N・m [40% ED]

High torque specification 15000 min ^-1 (Option)

Spindle output
46 kW (62 HP) [40％ ED]
37 kW (50 HP) [Cont. rating]
Max. torque: 200 N・m [40% ED]

High speed 18000 min ^-1 (Option)

Spindle output
35 kW (47 HP) [40％ ED]
26 kW (35 HP) [Cont. rating]
Max. torque: 84 N・m [40% ED]

High speed, high output 20000 min ^-1 (Option)

Spindle output
42 kW (56 HP) [40％ ED]
26 kW (35 HP) [Cont. rating]
Max. torque: 161 N・m [40% ED]

Ultra-high speed 25000 min ^-1 (Option)

Spindle output
23 kW (31 HP)[40％ ED]
15 kW (20 HP) [Cont. rating]
Max. torque: 22 N・m [40% ED]

HCN-6800 NEO Tool shank: BT50

Standard 10000 min ^-1

Spindle output
AC 45 kW (60 HP) [40% ED]
AC 37 kW (50 HP) [Cont. rating]
Spindle torque: 350 N・m (35.68 kgf・m) [40% ED]

High torque 8000 min ^-1 (Option)

Spindle output
AC 55 kW (73 HP) [25% ED]
AC 45 kW (60 HP) [Cont. rating]
Max. torque: 1413 N・m (144 kgf・m) [10% ED]

High speed 16000 min ^-1 (Option)

Spindle output
AC 37 kW (50 HP) [40% ED]
AC 30 kW (40 HP) [Cont. rating]

Spindle torque: 221 N・m (22.53 kgf・m) [40% ED]

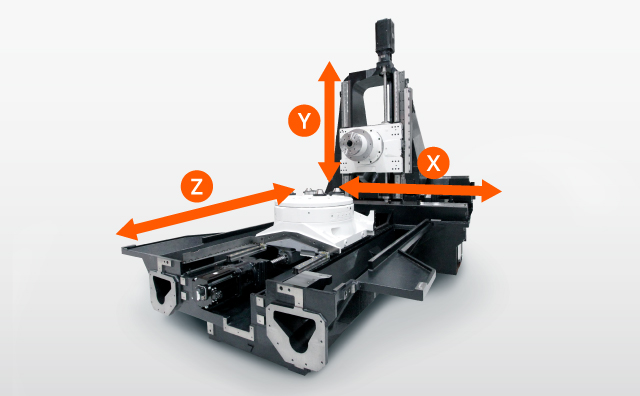

High-rigidity machine construction for stable machining performance

High-rigidity bed

The high-rigidity X-, Z-axis roller guide ensures stability during X- and Z-axis travel.

X-axis slanted design

The mounting surfaces of the X-axis linear guide rails are at different heights to ensure high rigidity and lower total weight. High-speed, high-precision positioning is achieved by driving close to the center of gravity.

Linear roller guides utilized on all axes

The HCN series uses linear roller guides on the X-, Y- and Z-axis for high accuracy and heavy-duty machining.

Rapid traverse rate, maximum feedrate 60 m/min (X, Y, Z axis)

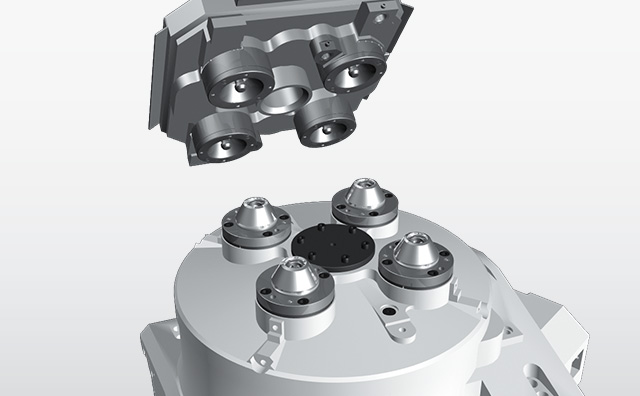

Cone coupling

The pallet and table are clamped by cone couplings to ensure high rigidity and high repeatable positioning accuracy when changing pallets.

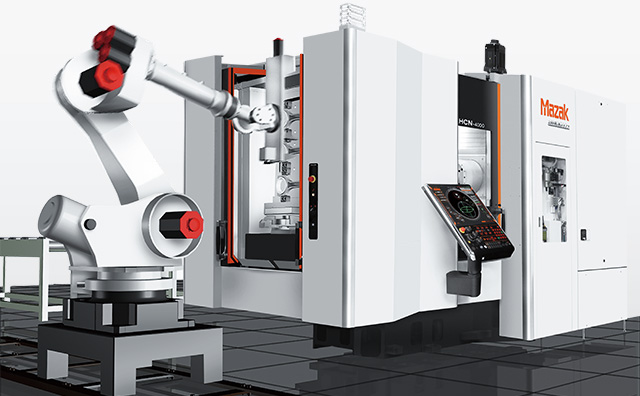

Automated system best suited for multi-product processing

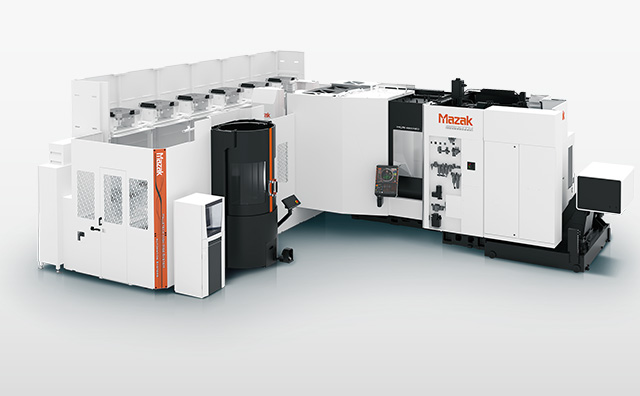

PALLETECH SYSTEM

Automated system best suited for multi-product machining, supporting the mixing of different types of machine.
As a modular design, the system can be expanded flexibly according to production conditions.

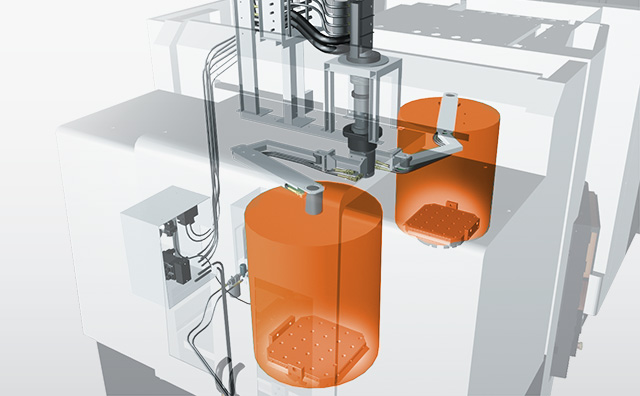

Pallet Changer

For higher productivity, set up the next workpiece during machining of the current workpiece.

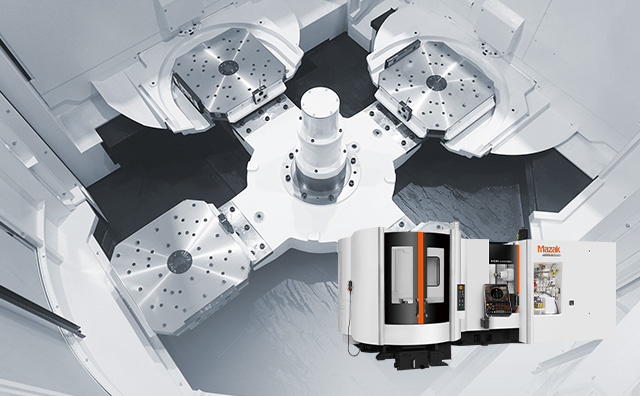

6-pallet changer (Option)

Set up multiple workpieces for automatic operation over extended periods of time.

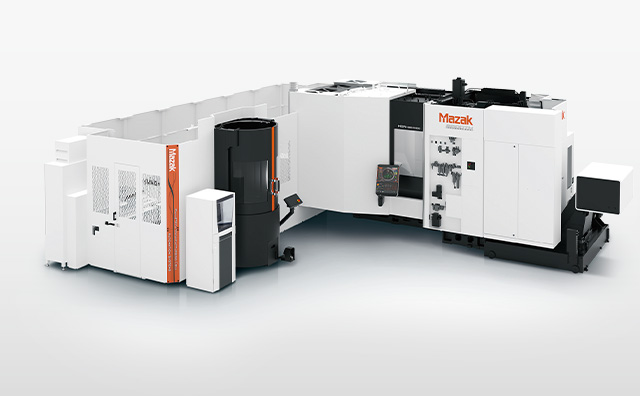

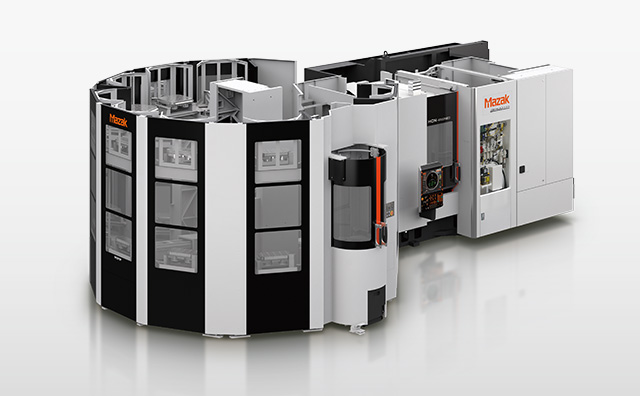

MPP (MULTI PALLET POOL) (Option)

* |Compatible with HCN-4000 NEO and HCN-5000 NEO

Maximum of 16 pallets can be stored in the pallet stocker. It will help automating the process with minimal space.

Hydraulic fixtures for higher productivity

Hydraulic power supply A(supply from machine top) (Option)

Hydraulic hoses supply hydraulic power from the top part of the pallet changer to fixtures mounted on each pallet.
Maximum of 12 ports can be arranged. High-power hydraulic supply with 21 MPa is available.

Hydraulic power supply B (supply through pallet)

A leak-free coupling system supplies hydraulic power to the supply port on the bottom of the pallet. Unlike hydraulic power supply from machine top, this system requires no hydraulic hose or hydraulic rotary coupling. This minimizes interference for easy fixture design and workpiece machining. High-power hydraulic supply with 21 MPa is available.

Loading station: Maximum of 8 ports
Inside machine: Maximum of 4 ports
