Compact vertical/horizontal machining centers for large volume production

Smallest width machines in its class
High spindle speed and acceleration/deceleration for high speed machining
Machine is designed for ease of maintenance to minimize machine downtime
Equipped with Fanuc 32i CNC

Select a specification

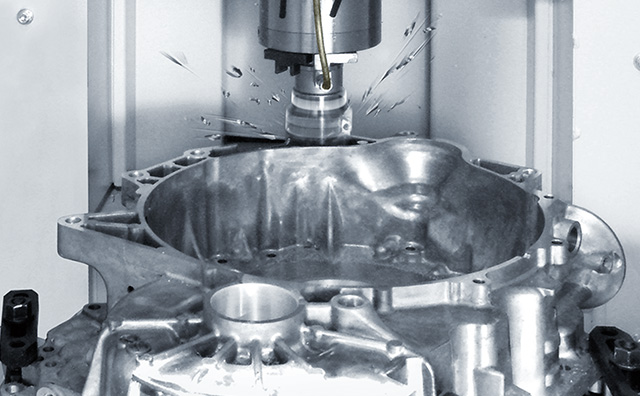

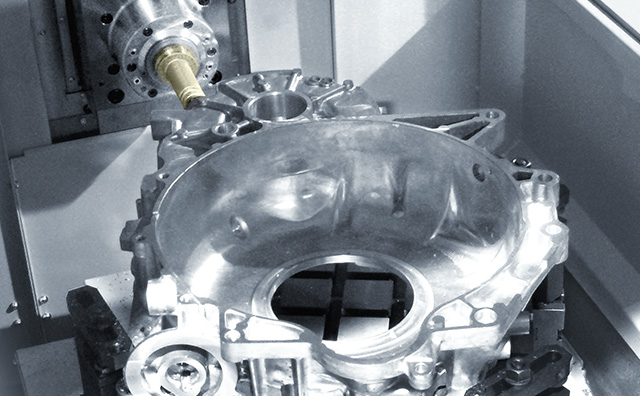

Compact, high-speed BT30 machining centers for large volume production of automotive components

Narrow machine size to expand your productivity

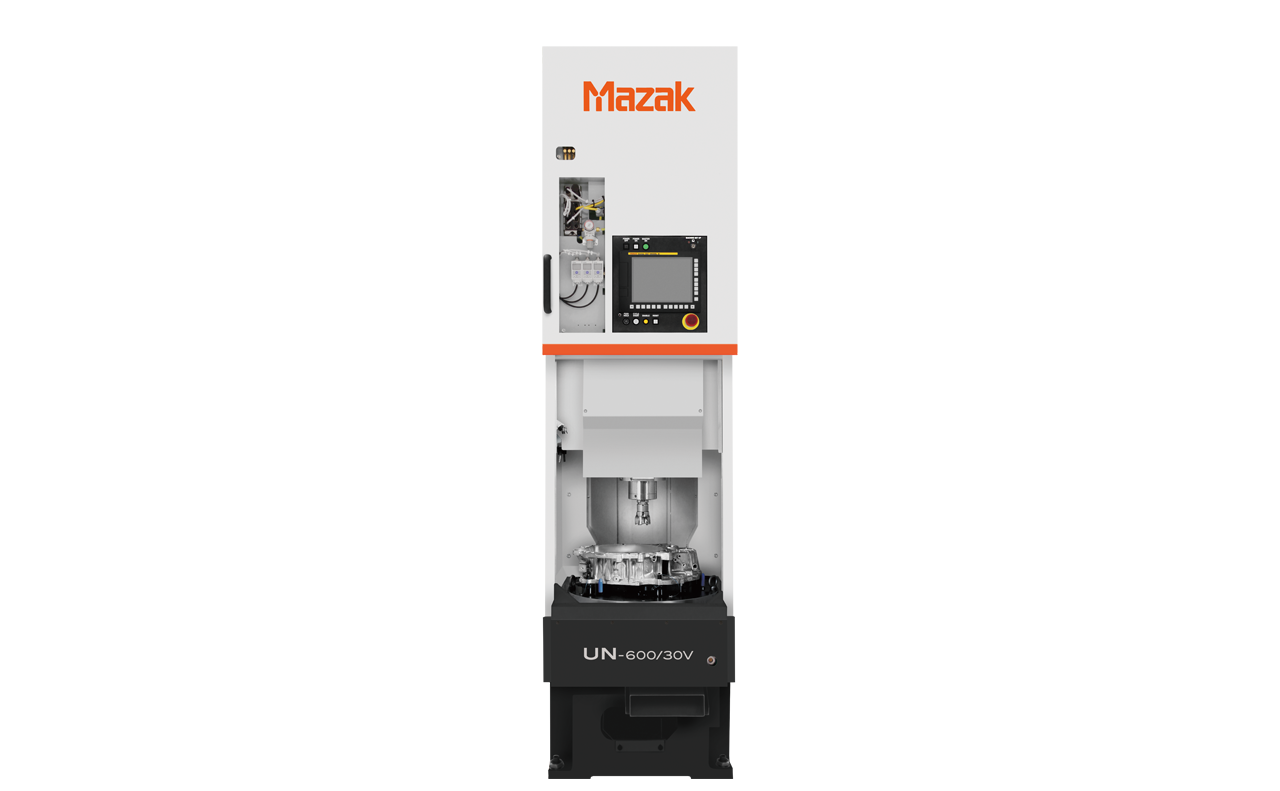

Vertical machining centers UN-600/30V 695 mm

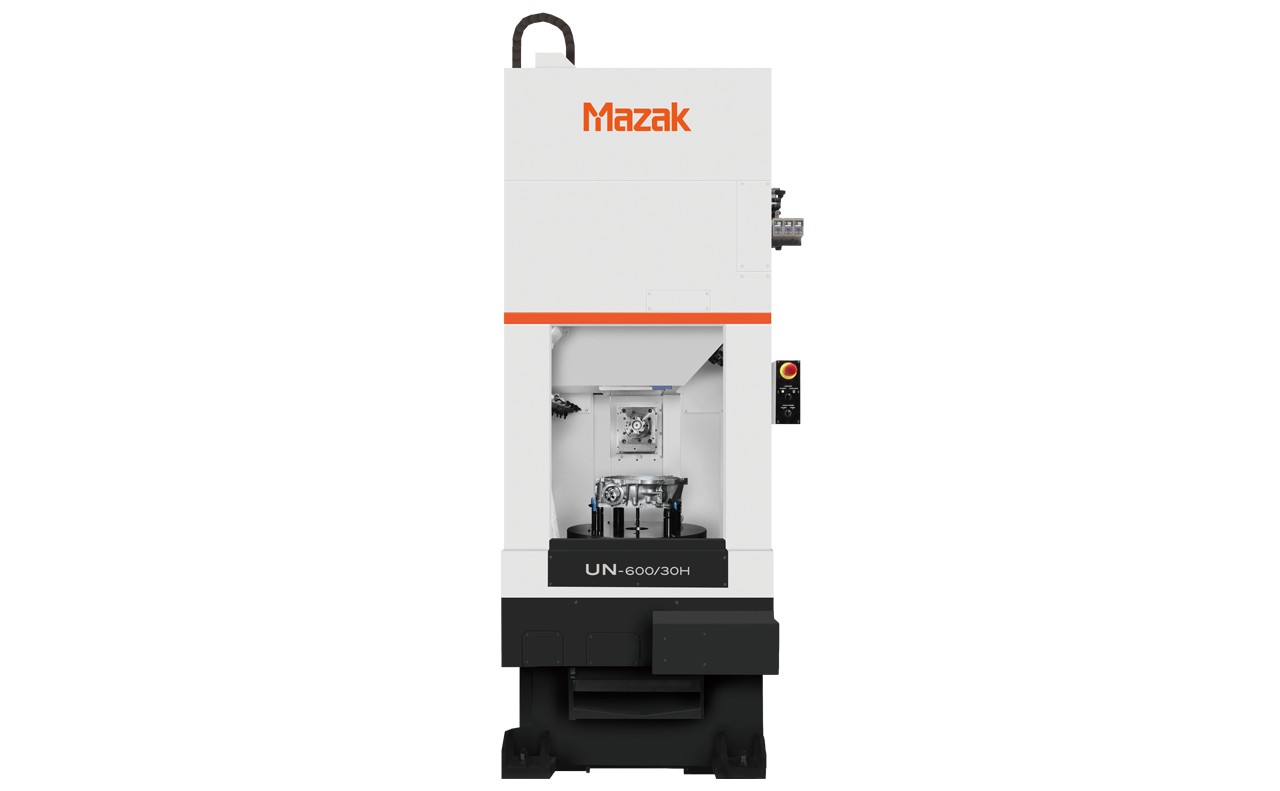

Horizontal machining centers UN-600/30H 990 mm

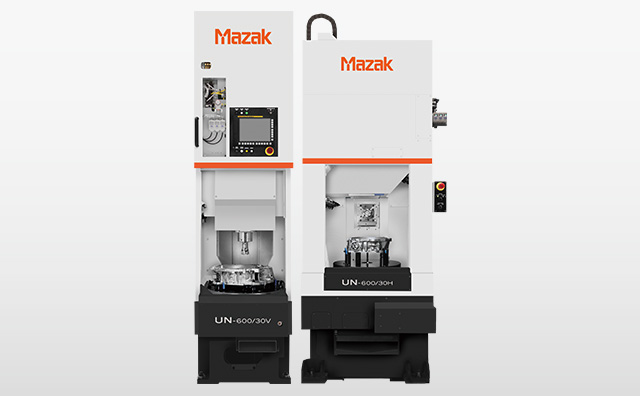

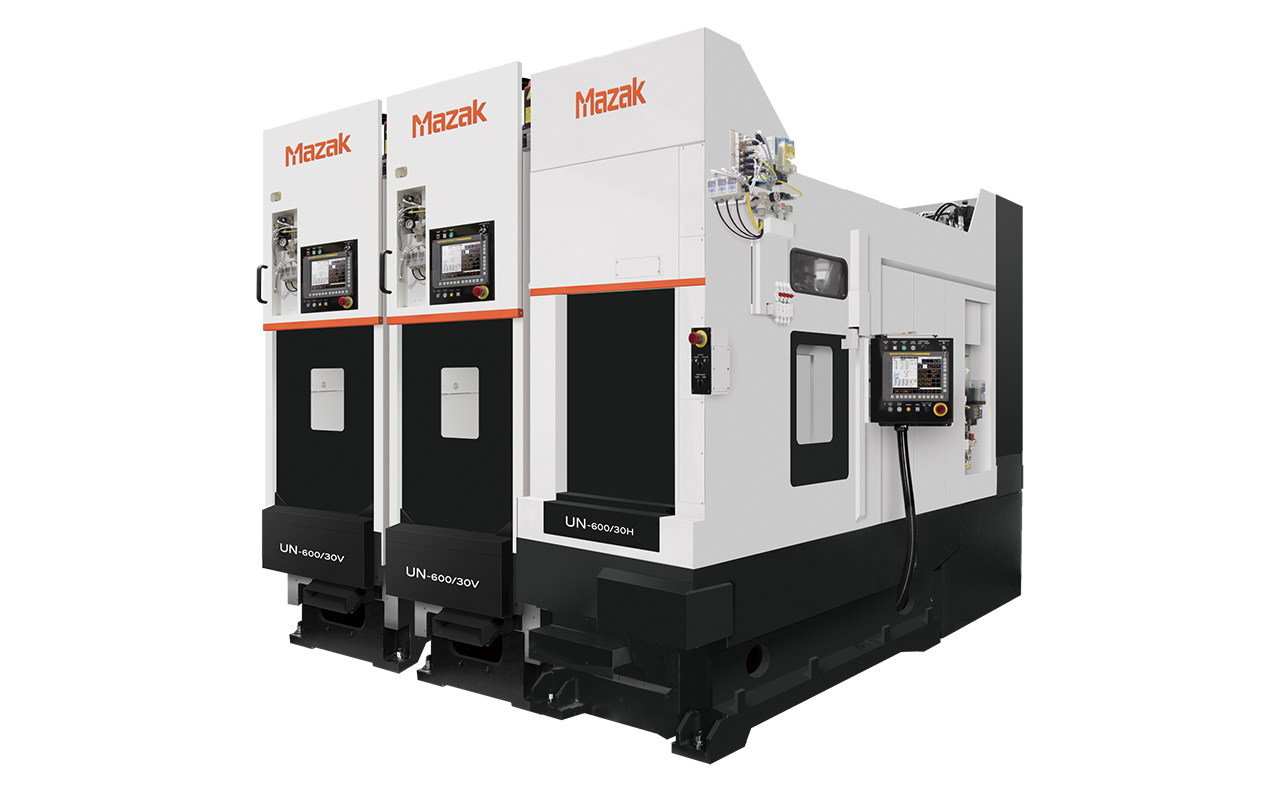

UN-600/30V (left) UN-600/30H (right)

UN-600/30V

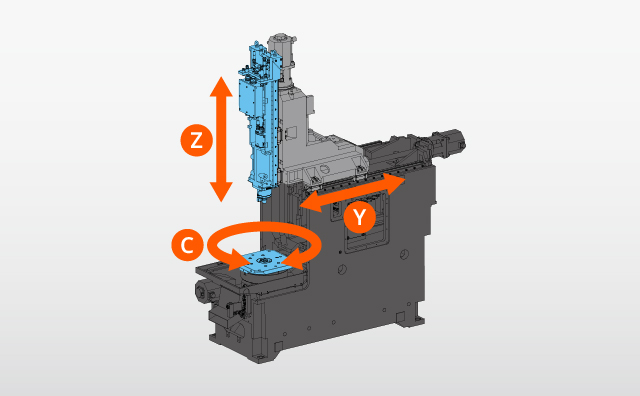

Significant reduction of machine width achieved by the interpolation of the machine table (C-axis) and the column (Y-axis) for the X-axis positioning.

UN-600/30H

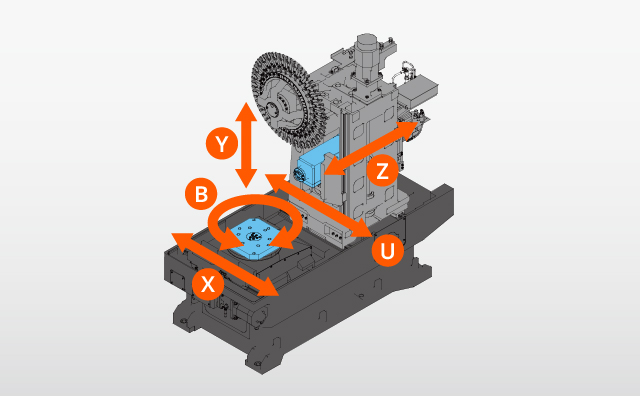

By moving the column (U-axis) for one-half the X-axis stroke and the table (X-axis) for the other half, the machine width is considerably reduced when compared to other horizontal machining centers with the same workpiece capacity.

High speed

Spindle speed: 20000 min^-1
Acceleration / deceleration: 0.49 sec [ 0 to 20000 min^-1]

UN-600/30V

Feedrate(Y-, Z-axis : 60 m/min, C-axis : 100 min^-1)
Feed acceleration(Y-axis : 1.6 G, Z-axis : 1.8 G)

UN-600/30H

Feedrate(X-axis [X-, U-axis] ): 120 m/min [60 m/min], Y-, Z-axis : 60 m/min)
Feed acceleration(X-axis [X-, U- axis]: 2.0 G [1.0 G], Y-axis /Z-axis : 1.5 G / 2.0 G)

Ease of maintenance

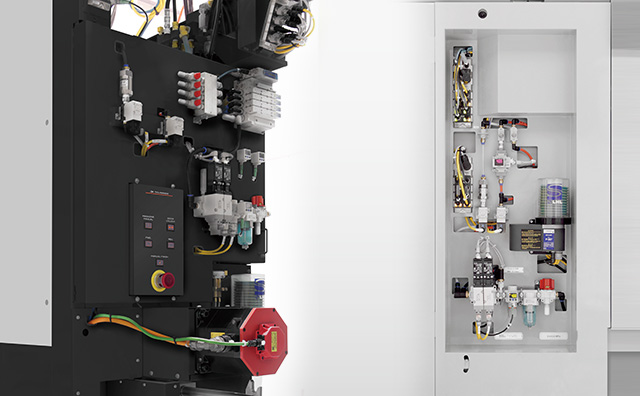

Lubrication, air supply and other items requiring frequent access are centrally located in an uncovered area for ease of maintenance.

[Left] UN-600/30V
(Back of machine)
[Right] UN-600/30H
(Right side of the machine)

Create programs / operate manual data input (MDI) with X-, Y-, Z-axis rectangular coordinates

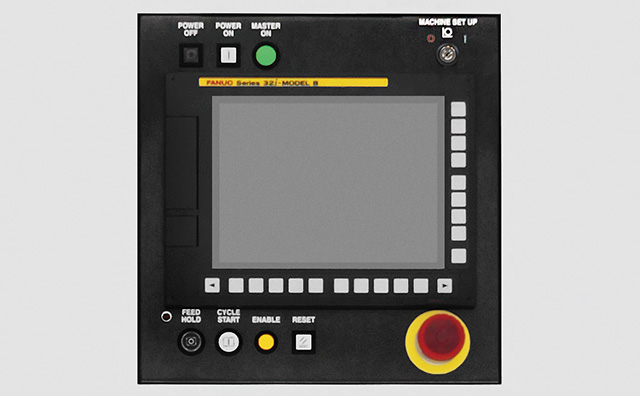

Equipped with Fanuc 32i CNC

Programming of the X-axis is done the same as for a conventional vertical machining center. The CNC automatically converts the linear coordinates to polar coordinates for the X-axis.
