CNC Turning Centers

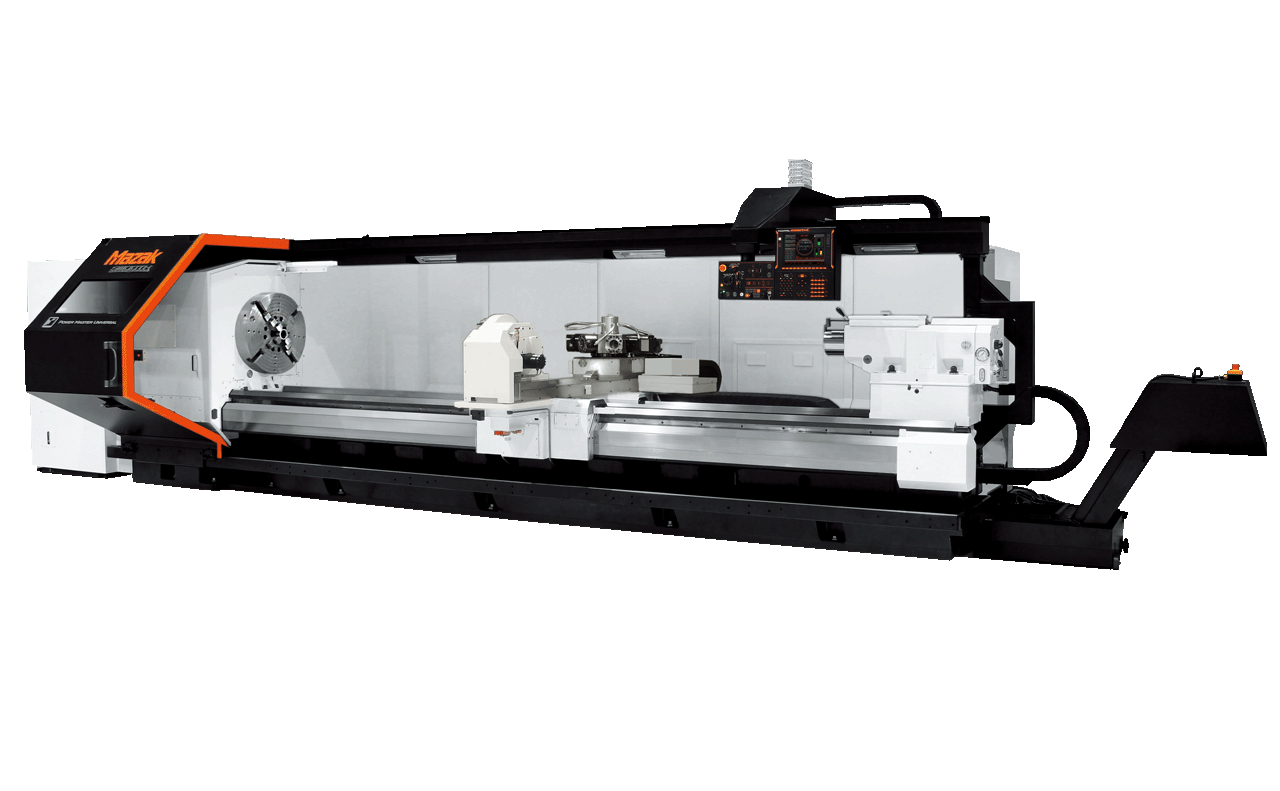

POWER MASTER
Flat CNC turning center for heavy cutting
- Wide range of available spindle bores : Φ118 mm, Φ260 mm*, Φ320 mm*, and Φ375 mm*
- High power AC 45 kW (60 HP) spindle for heavy duty machining
- MAZATROL SmoothC CNC for unsurpassed ease of operation
*Option
Increase manufacturing efficiency with machines capable of heavy duty machining for large-diameter, long shaft workpieces
POWER MASTER Chucker
Maximum machining diameter: Φ1000 mm
Octagonal disc turret for heavy duty machining
POWER MASTER Universal
High efficiency machining of long shaft workpieces
Octagonal disc turret + 6-tool hexagonal boring turret for exceptional versatility
Achieves high productivity in machining large-diameter, long shaft workpieces
High torque spindle
CNC turning centers of this class require large cutting forces at low revolution speeds, since workpieces for this class is likely to have large diameters and large machining allowances.
The spindle headstock of this machine has a 4-stage hydraulic pressure shift that generates less heat, and achieves a maximum torque of 7280 N·m, twice as much as that of conventional machines.
This enables full-power cutting at 45 kW (60 HP) even with workpieces with a large diameter of Φ600 mm, and can significantly reduce cutting time.

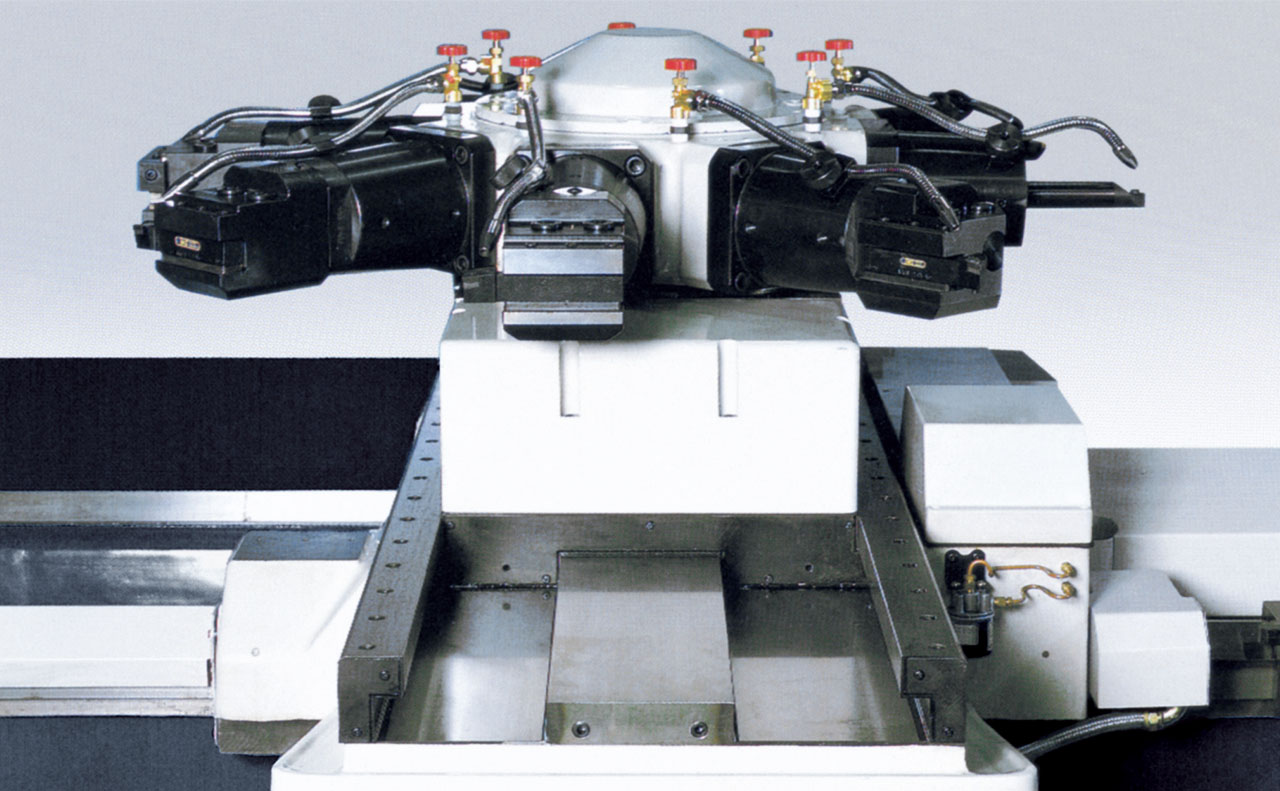

Octagonal boring turret (POWER MASTER Chucker)
This turret design boasts a maximum machining diameter of Φ1000 mm. This machining diameter of Φ1000 mm for the standard indexing tooling is the largest in this class. Turret indexing speed is only 3.2 seconds per step, which can contribute in significantly reducing your machining time.

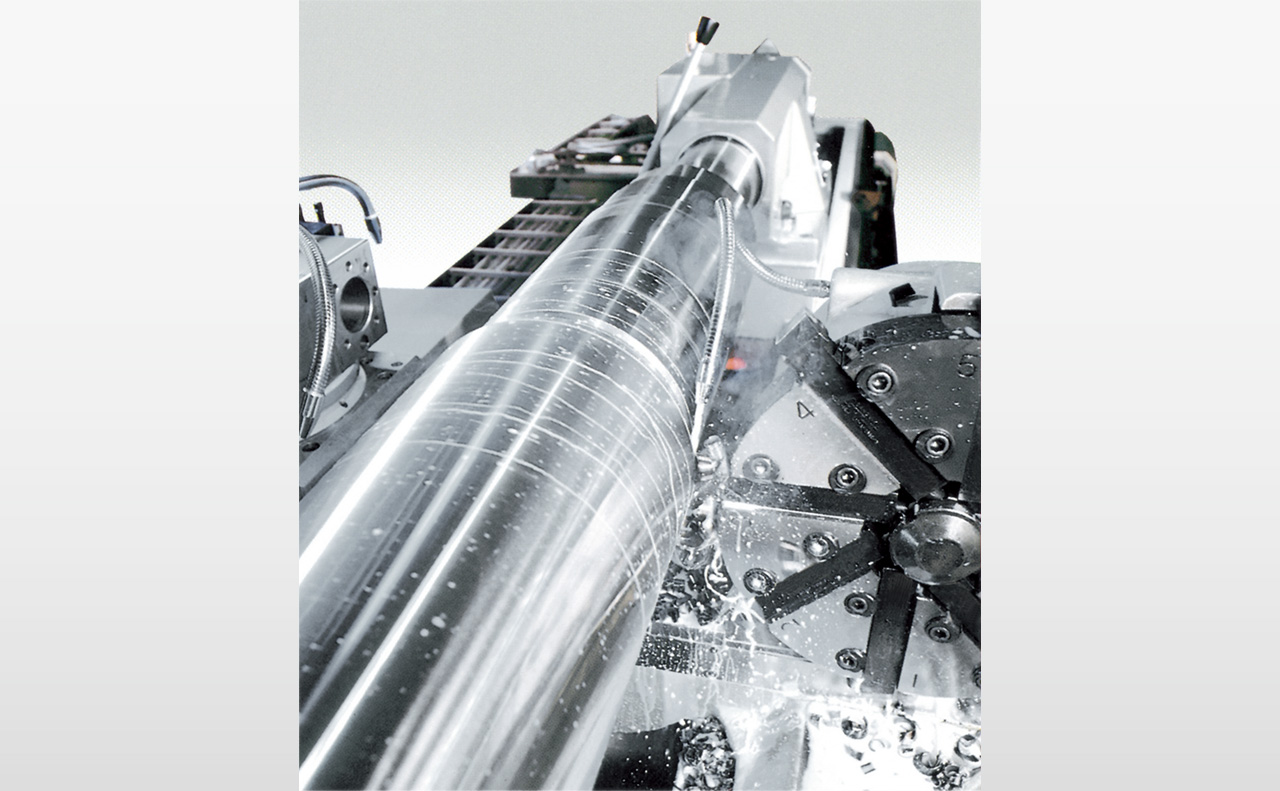

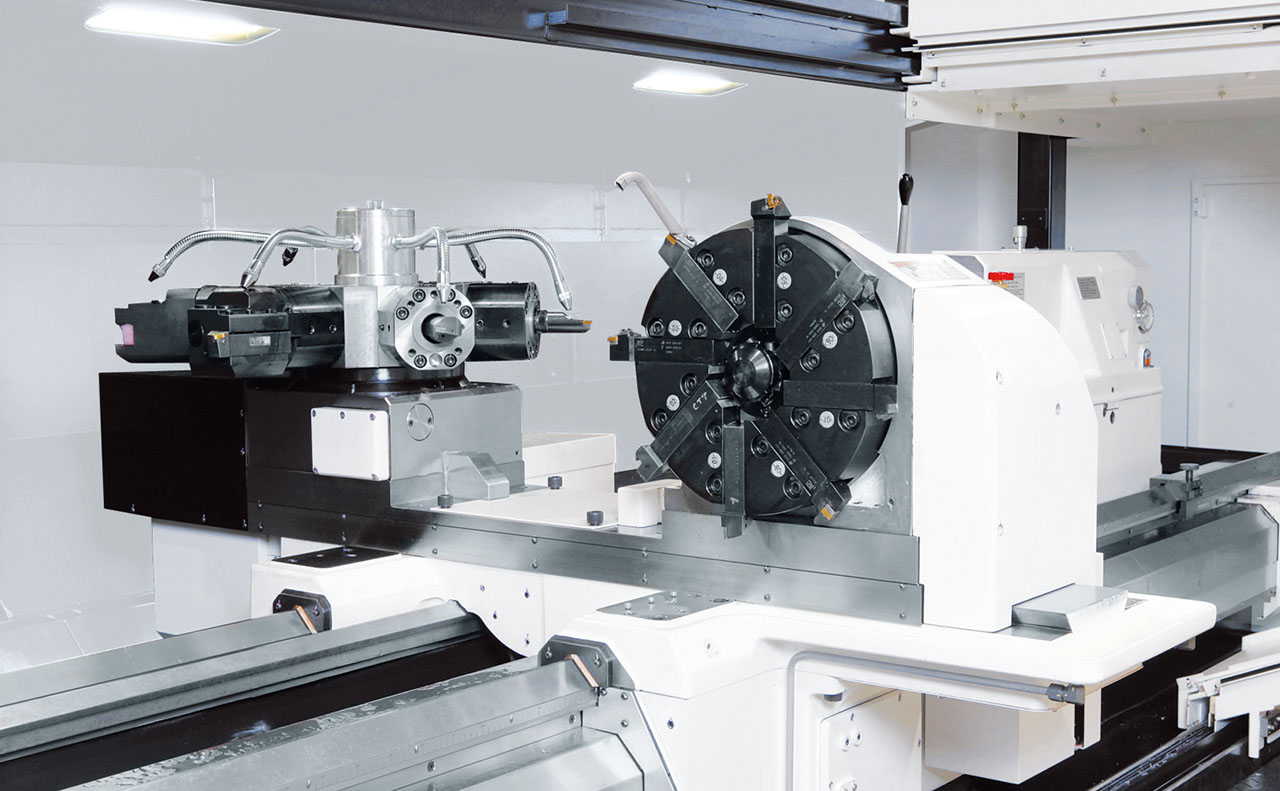

Octagonal disc turret + 6-tool hexagonal boring turret (POWER MASTER Universal)
The front 8-station disc turret can mount 8 tools of 32 mm × 32 mm × 160 mm and the rear turret can mount 6 tools (Inside / outside diameters and facing tool holders).
Machine design for heavy duty machining

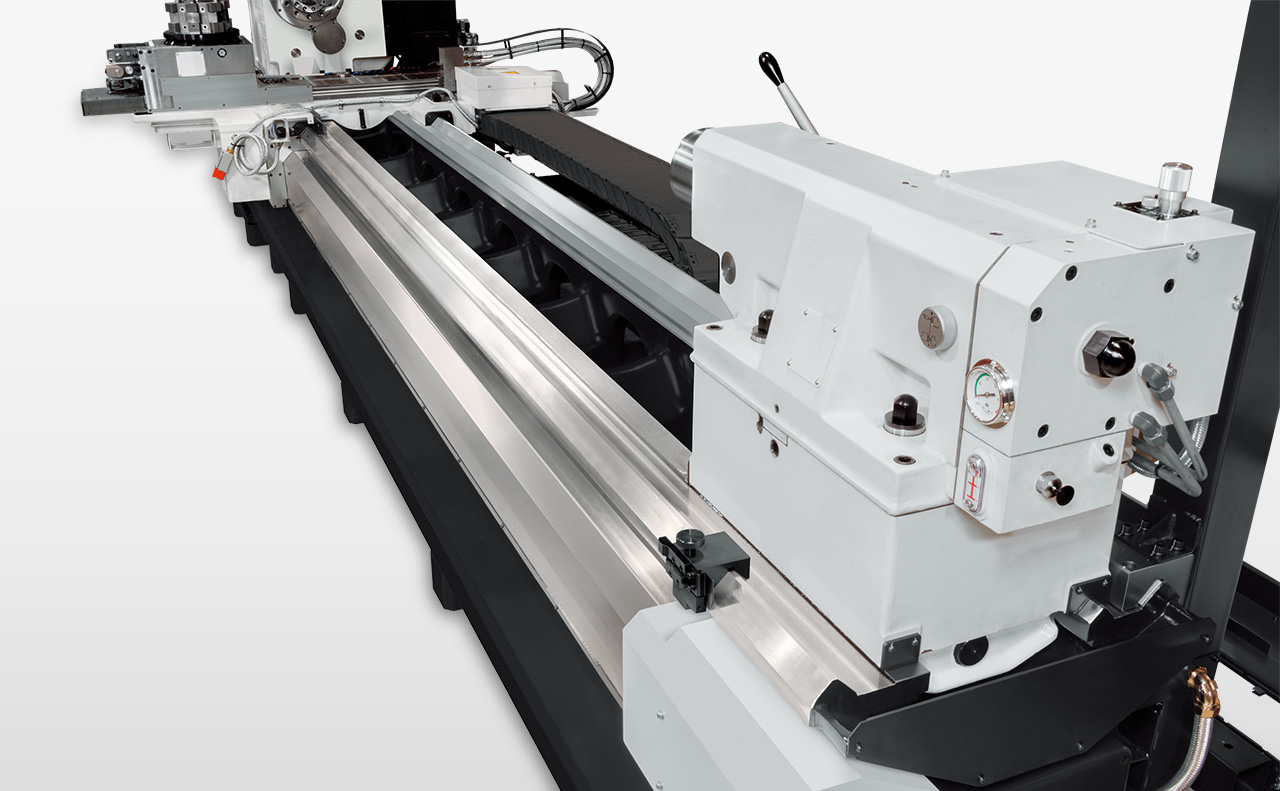

High rigidity bed
The wide machine base is a rigid foundation for heavy duty machining due to the reinforced ribs. The slide way is a equal angle V-shape with high, long-lasting rigidity that is created with heat treatment and precise grinding finish.
Additionally, machined chips are smoothly removed from the machining area by the inclined chutes in the machine bed.

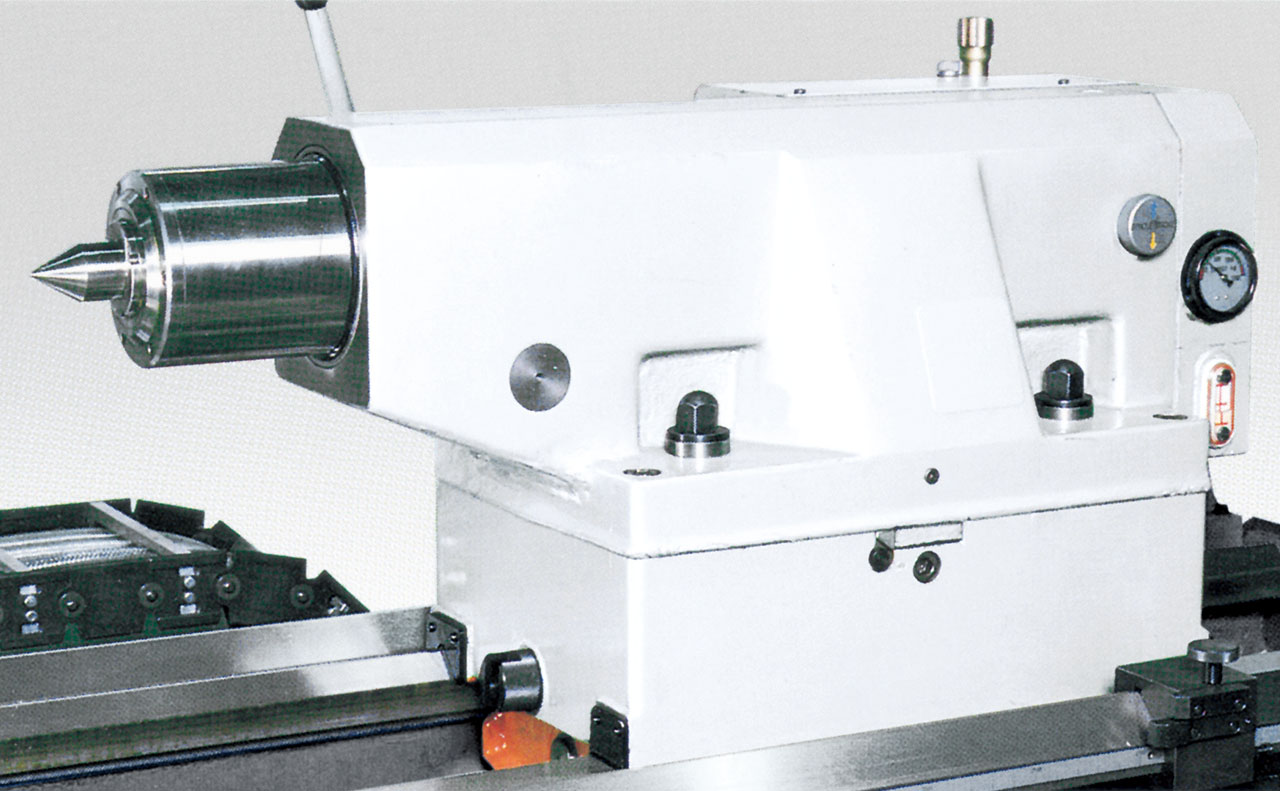

Highly rigidity tailstock
Compatible with POWER MASTER Universal only
The tailstock has a large 150 mm diameter quill with built-in MT No.5 center. The tailstock is clamped to the bed with 12-tons of force and can support workpieces up to 3-tons.
Specification for high-accuracy machining of large-diameter, long-length workpieces

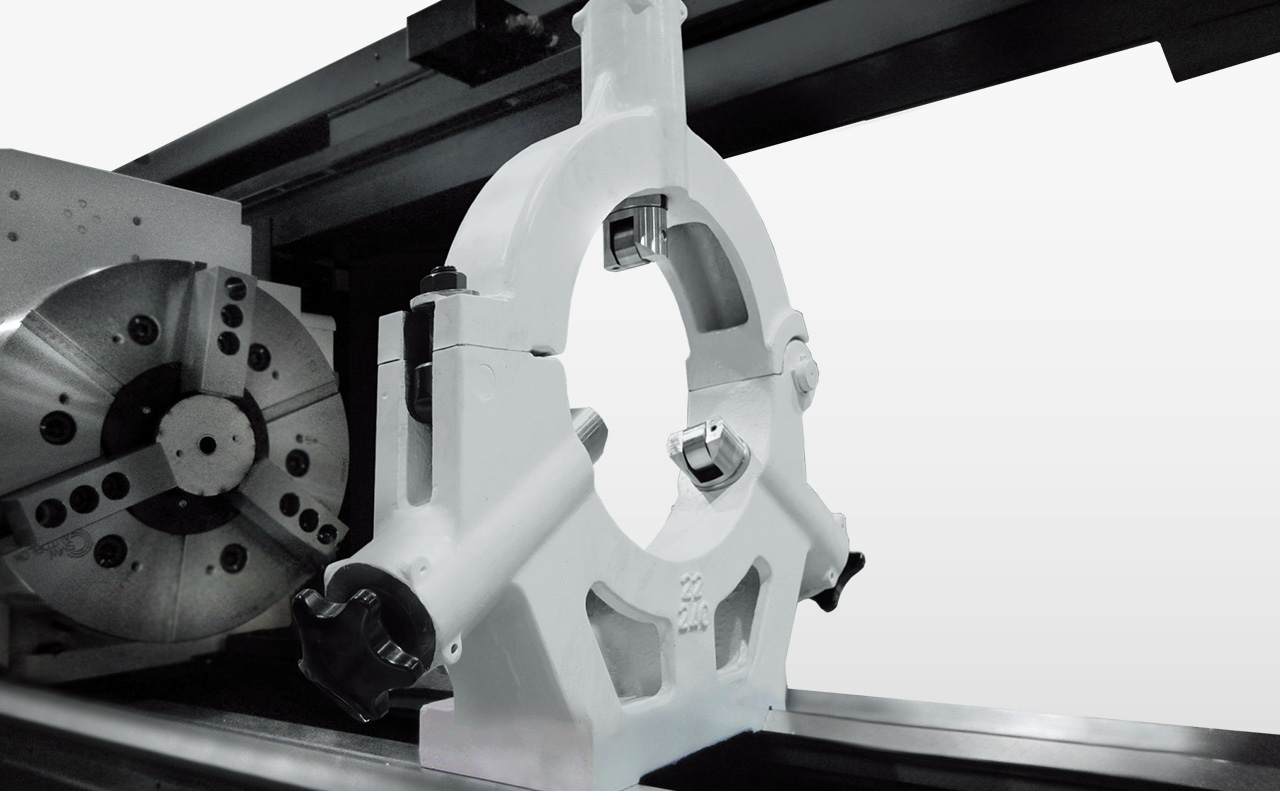

Steady rest (Option)
There are steady rest devices available for Φ20 mm to Φ250 mm, Φ150 mm to Φ350 mm, Φ250 mm to Φ450 mm, and Φ350 mm to Φ550 mm, which are effective when machining long shaft shaft of each diameter.

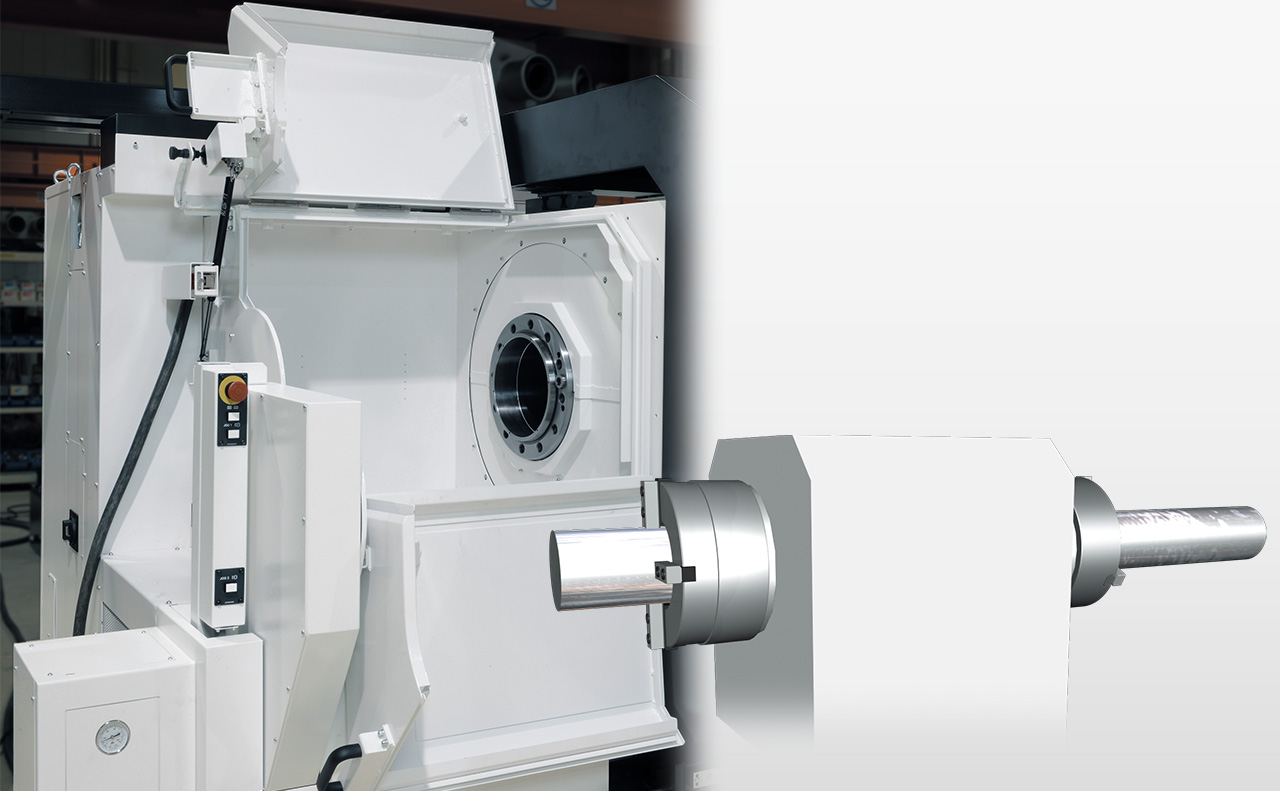

Rear chuck mounting preparation (Option)
Rear chuck mounting preparation allows a chuck to be mounted on the rear of the spindle. This includes covers that are easily opened for access to the rear chuck for mounting or unmounting. For safety, a switch detects if the covers are opened and prevents machine operation.
MAZATROL SmoothC : High usability, high speed, and high precision
MAZATROL conversational programming
MAZATROL conversational programming, allows even novice engineers to quickly create machining programs with support functions such as automatic cutting condition selection and M / G code input support.
POWER MASTER Chucker

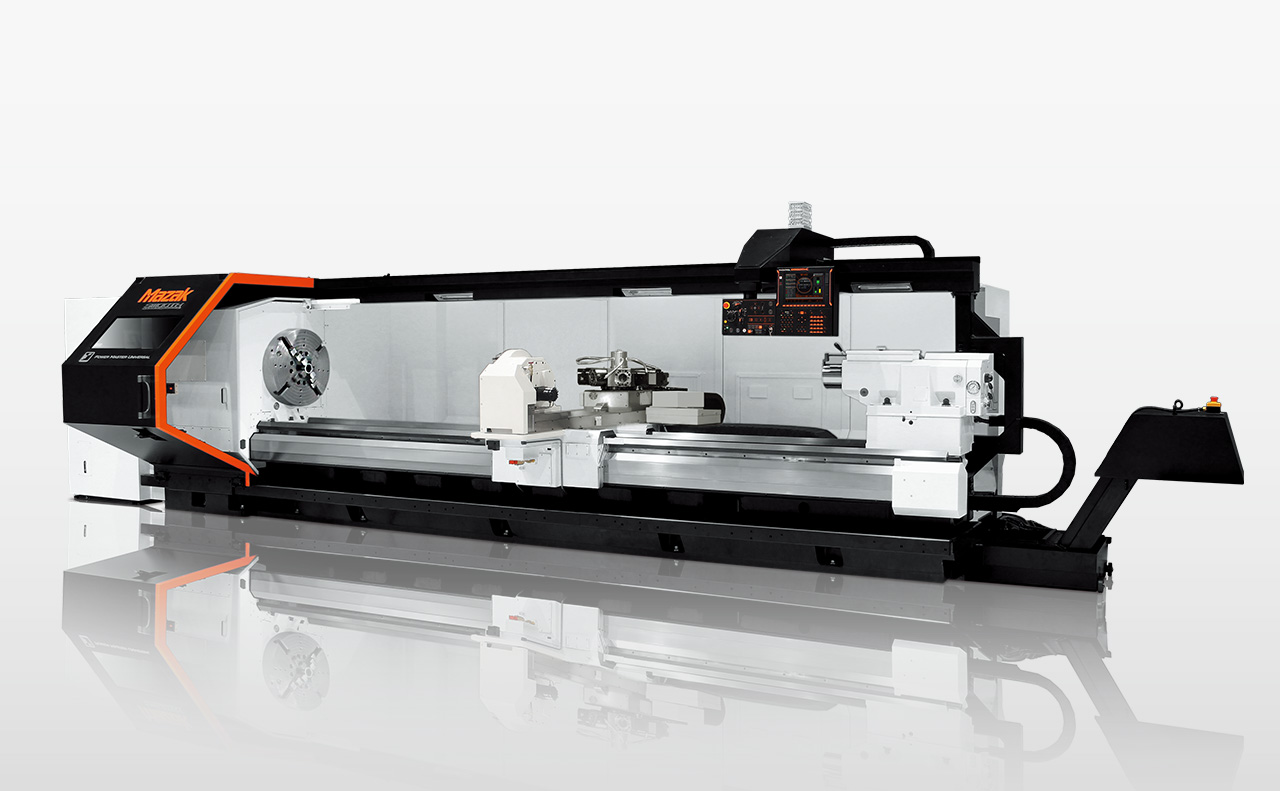

POWER MASTER Universal
| Chuck size | 15" |
| Max. machining diameter | Φ840 |
| Max. machining length | 4005 mm |
