| Chuck size | From 18" |
| Max. machining diameter | Φ910 mm |
| Max. machining length | 1175 mm / 2165 mm / 3300 mm / 4190 mm |

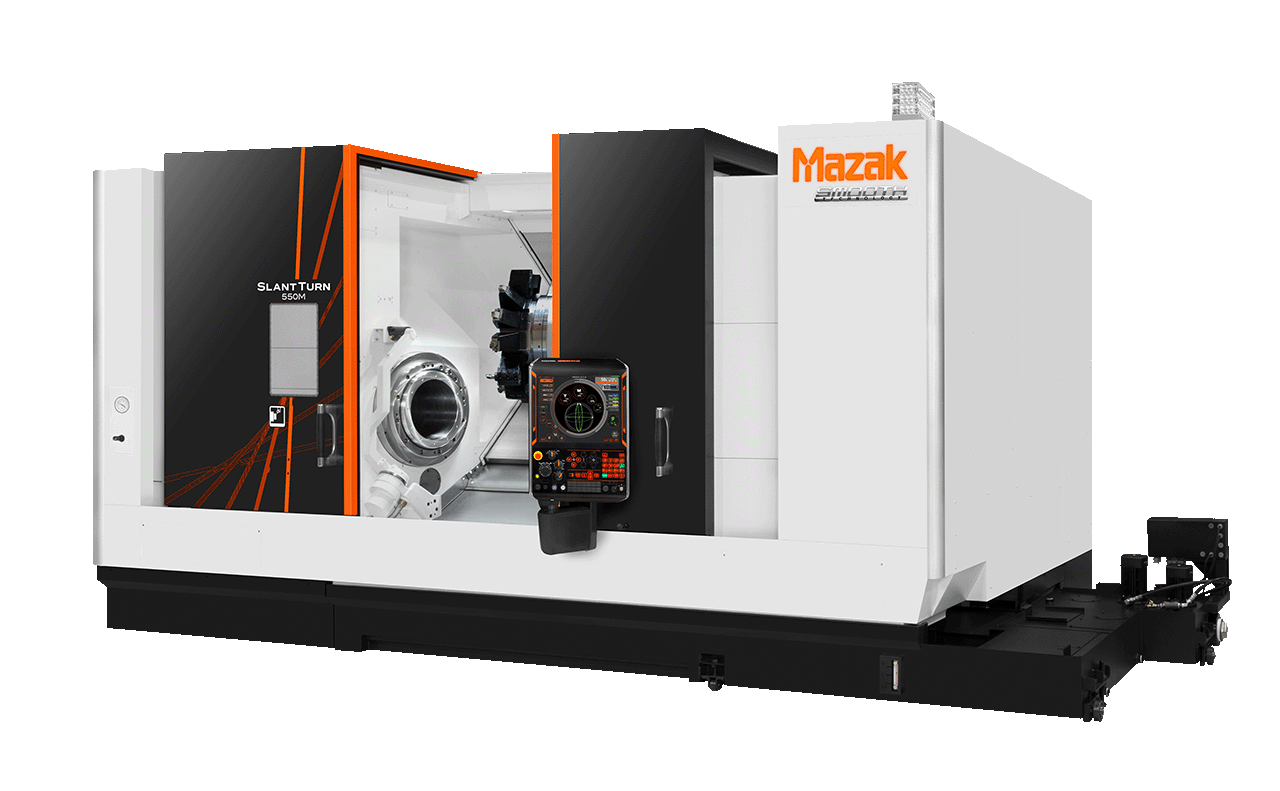

CNC Turning Centers
SLANT TURN

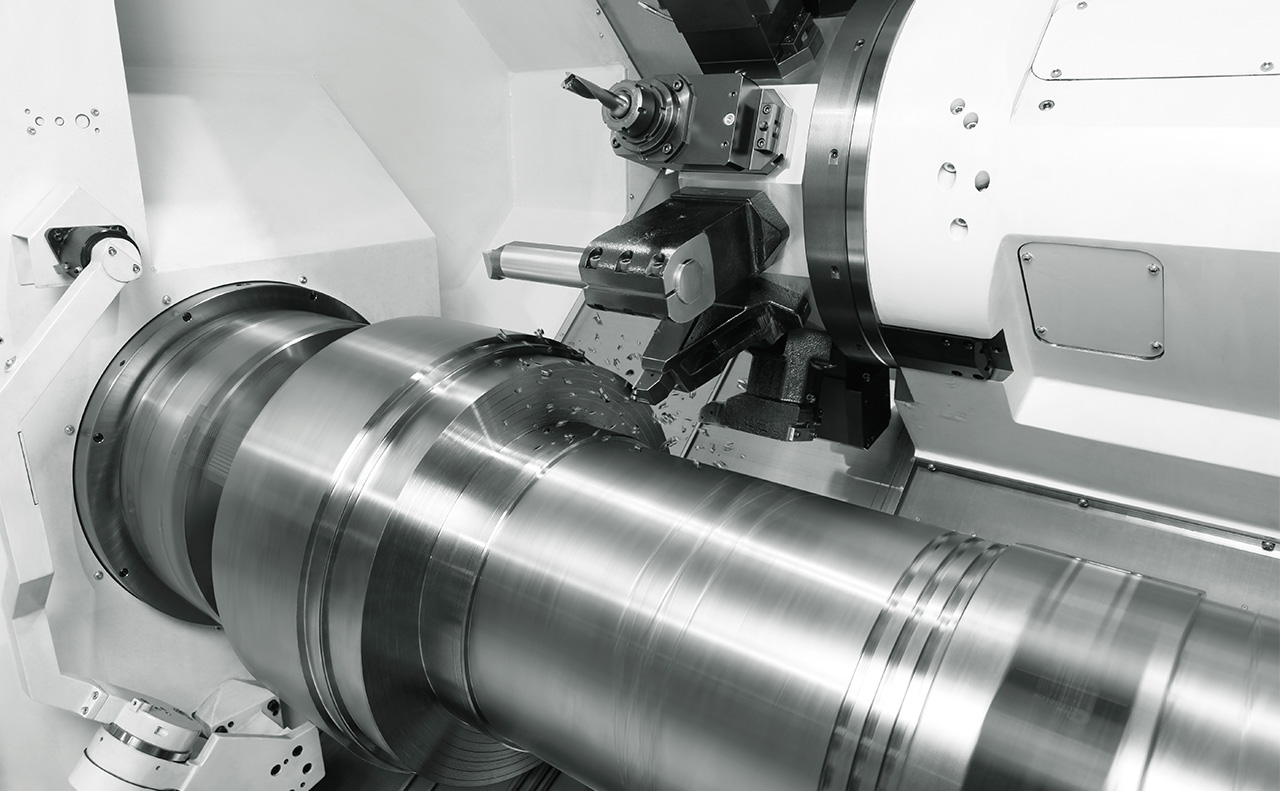

Heavy-duty machining of large, long shaft workpieces
- Powerful cutting of large-diameter workpieces with high torque spindles
- Machine construction with high rigidity roller guides
- Wide range of spindle bores up to Φ375 mm
A wide variety of spindle bore options to support machining of large, long shaft workpieces
Max. machining diameter Φ 910 mm
Max. machining length 1016 mm to 4099mm
Spindle bore variations

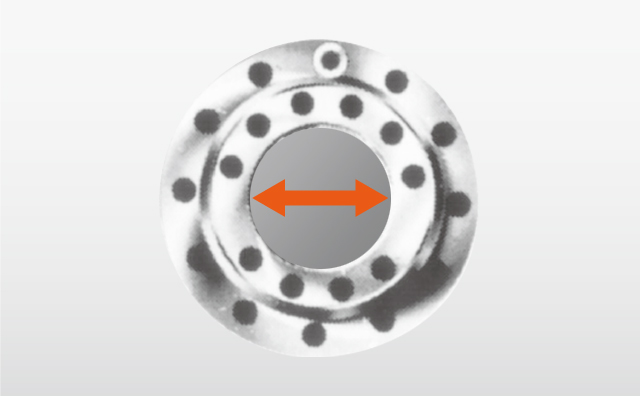

Φ 185 mm
SLANT TURN
500, 500M

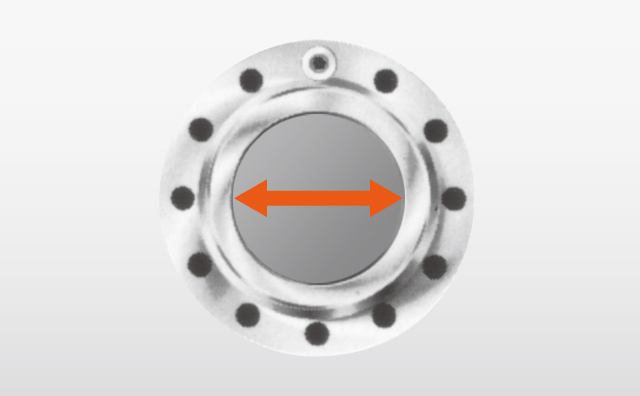

Φ 275 mm
SLANT TURN
550, 550M

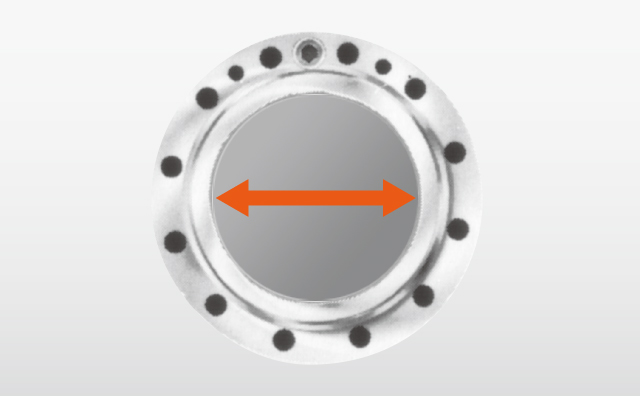

Φ 320 mm
SLANT TURN
550, 550M
Option

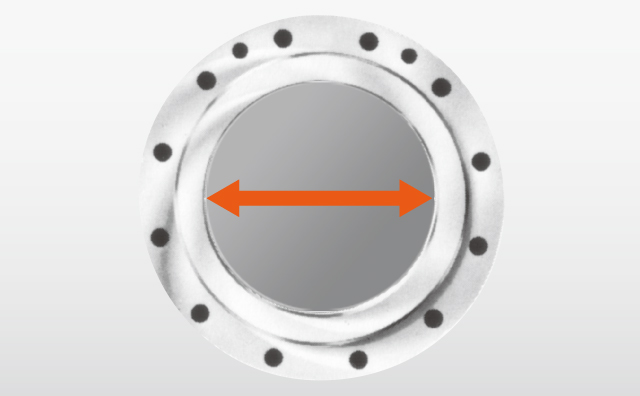

Φ 375 mm
SLANT TURN
600, 600M
High torque for powerful cutting of large-diameter workpieces
Achieves high-efficiency machining with full power even in low speed ranges
The two-step gear shifting method can achieve high spindle speed and large cutting torque in two ranges.
| Max. torque | 7000 N・m |
| Main spindle power | 45 kW（60 HP） |
Further improve productivity with a wide variety of options

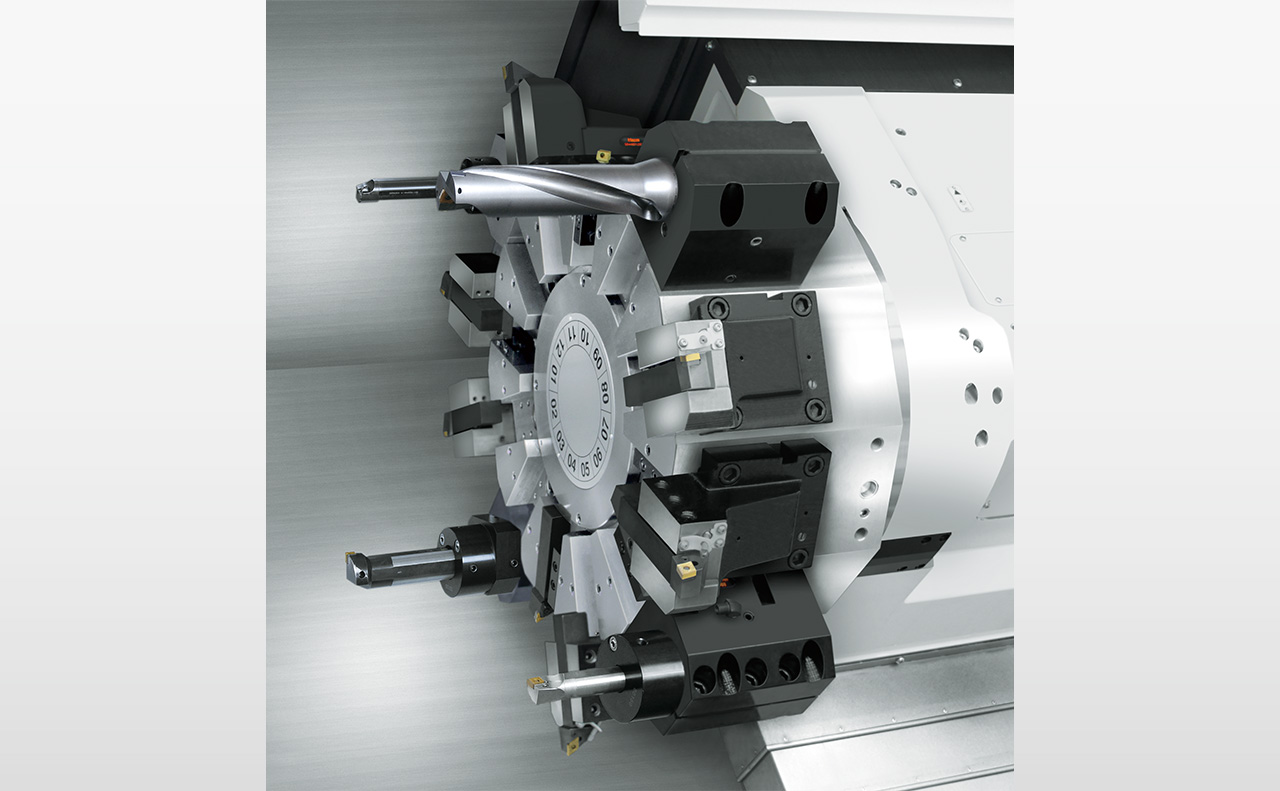

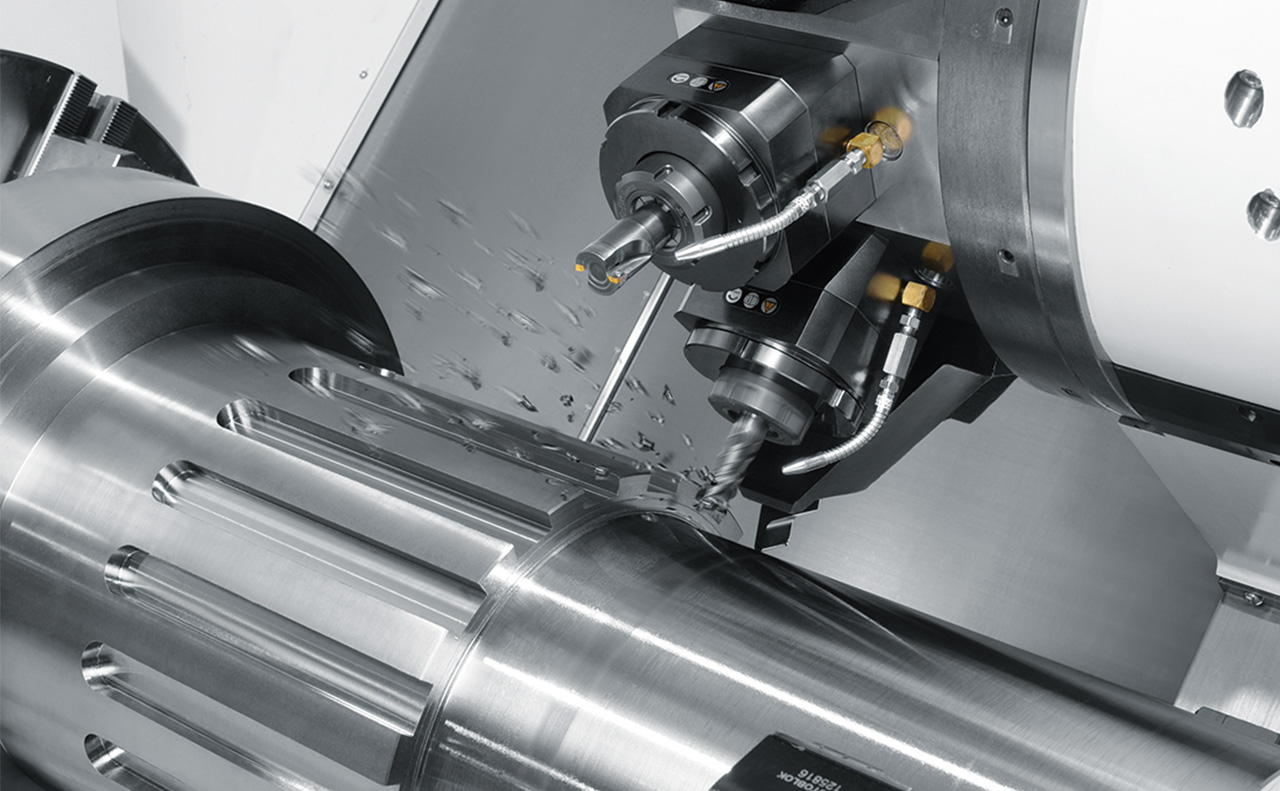

High power milling spindle that rival those of small machining centers
SLANT TURN 500M, 550M, and 600M are capable of highly efficient milling / turning. A high-torque version is also optionally available.

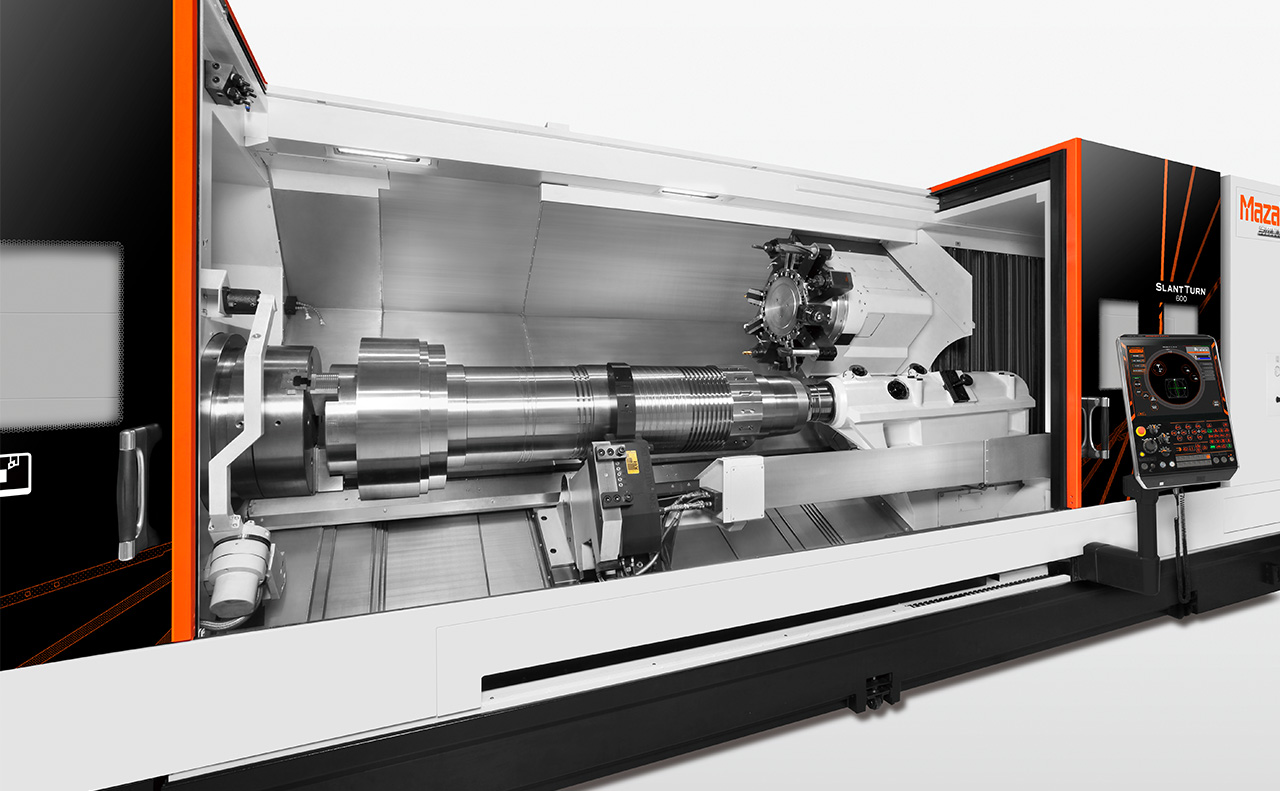

Automatic steady rest with significantly reduced travel time
The maximum available steady rest size is Φ410 mm - largest for this turning center class. Positioning time is considerably reduced with operation by CNC. The tailstock can approach much closer to the steady rest for an expanded machining area.

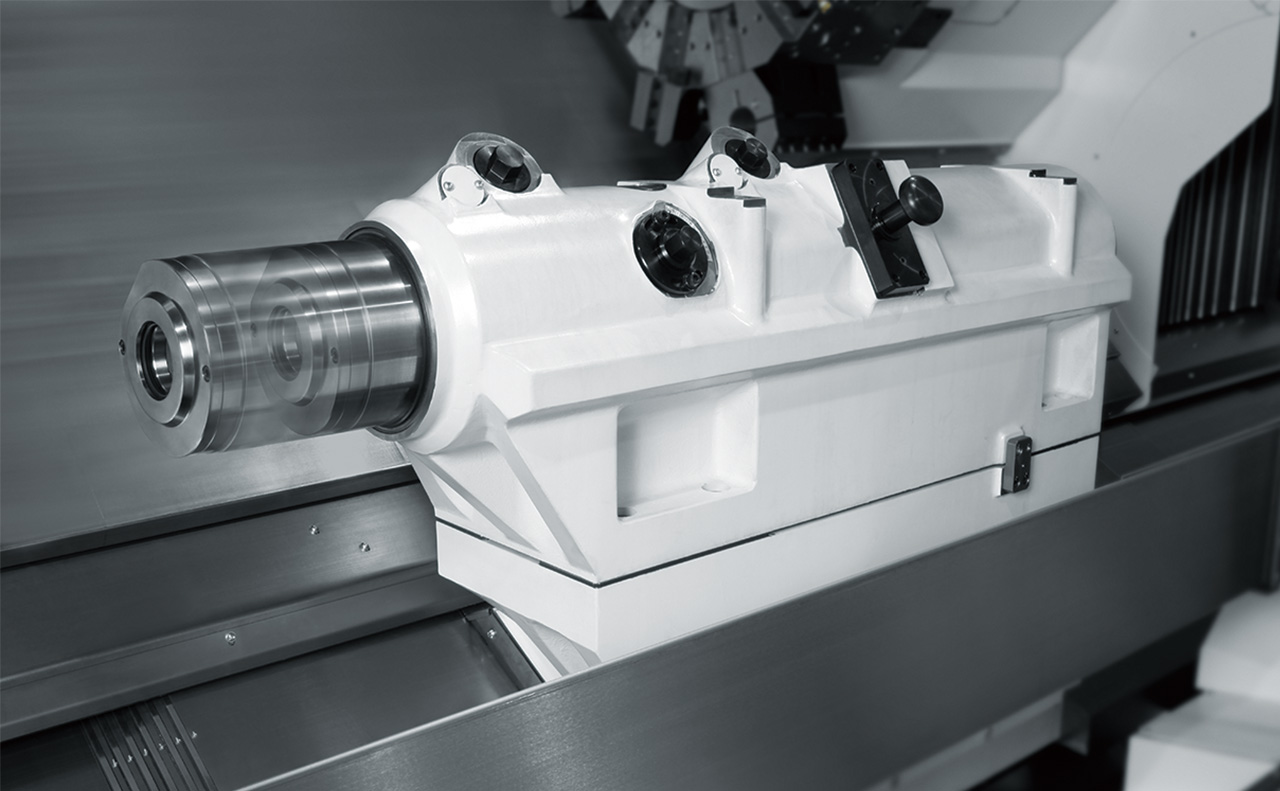

Tailstock to handle both long and short shaft workpieces
The tailstock quill can extend 250 mm making it possible to support both long and short shaft workpieces.
This eliminates the need to remove the steady rest when changing the workpiece from long to short shaft.
Spindle bore: Φ185 mm
SLANT TURN 500
SLANT TURN 500M
| Chuck size | From 18" |
| Max. machining diameter | Φ910 mm |
| Max. machining length | 1082 mm / 2075 mm / 3210 mm / 4099 mm |
Spindle bore: Φ275 mm
SLANT TURN 550
| Chuck size | From 21" |
| Max. machining diameter | Φ910 mm |
| Max. machining length | 1016 mm / 2009 mm / 3144 mm / 4033 mm |
SLANT TURN 550M
| Chuck size | From 21" |
| Max. machining diameter | Φ910 mm |
| Max. machining length | 1051 mm / 2044 mm / 3179 mm / 4068 mm |
Spindle bore: Φ375 mm
SLANT TURN 600
| Chuck size | From 21" |
| Max. machining diameter | Φ910 mm |
| Max. machining length | 2009 mm / 3144 mm / 4033 mm |
SLANT TURN 600M
| Chuck size | From 21" |
| Max. machining diameter | Φ910 mm |
| Max. machining length | 2044 mm / 3179 mm / 4068 mm |
