Multi-Tasking Machines

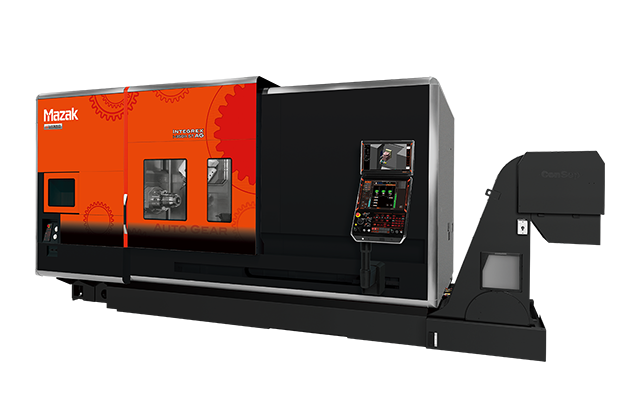

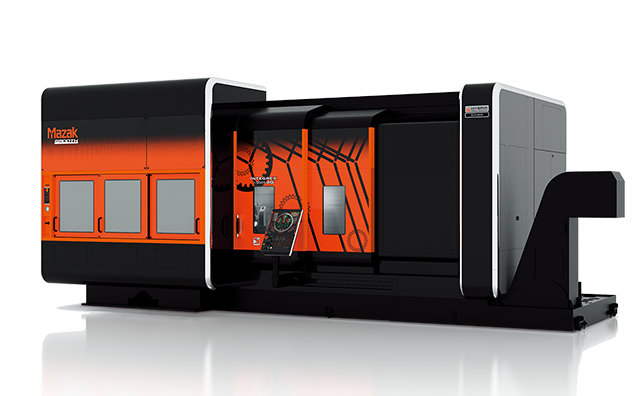

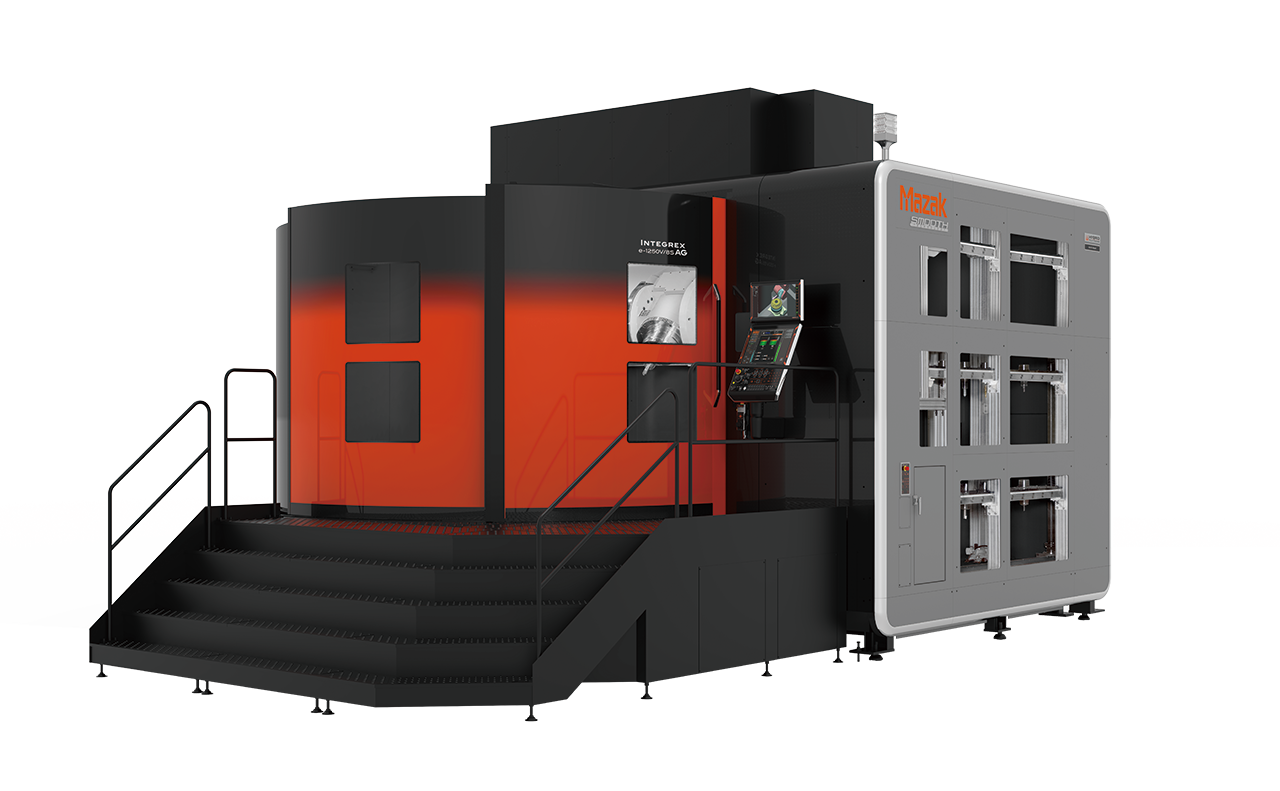

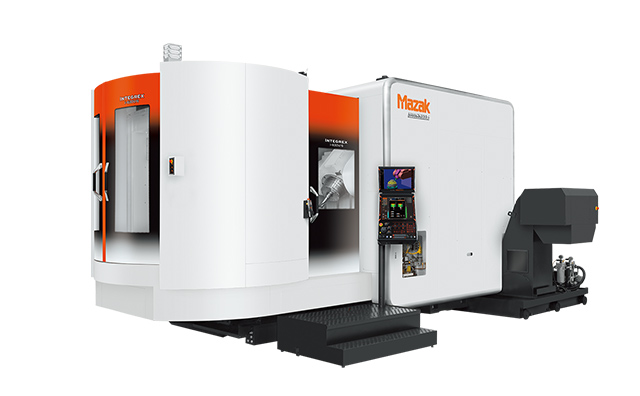

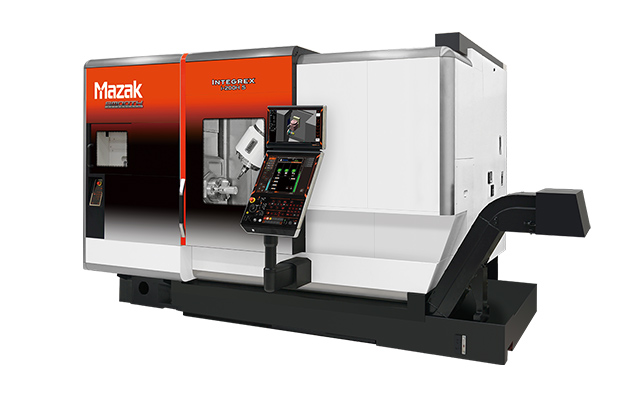

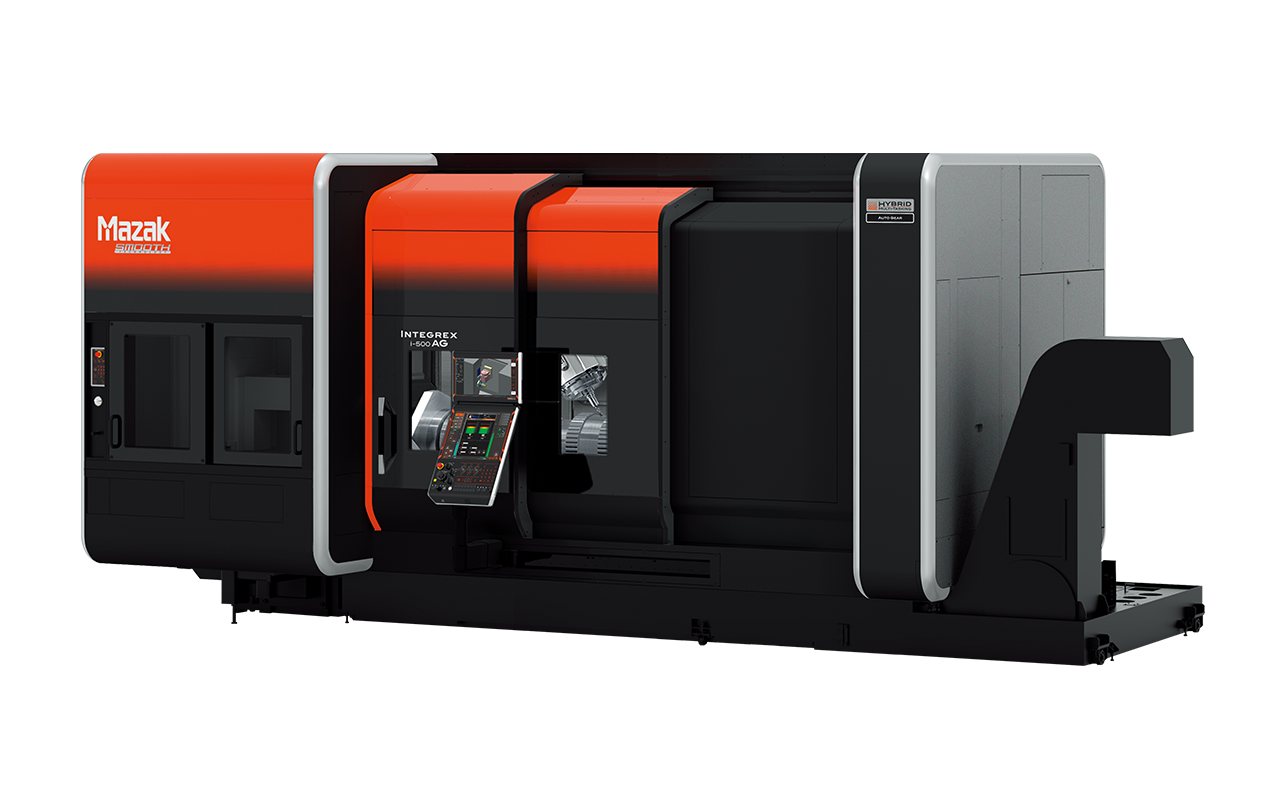

INTEGREX AG

Hybrid multi-tasking machines with gear cutting and measurement

Gear process integration facilitates high-precision machining while reducing in-process time and initial costs.
Three types of gear machining methods (gear skiving, hobbing, and endmilling) are integrated to meet diverse needs, from high-mix low-volume production to mass production
Cutting tool paths and measurement can be easily and quickly generated by conversational programming

Max. machining diameter

The integration of INTEGREX with gear cutting and measurement

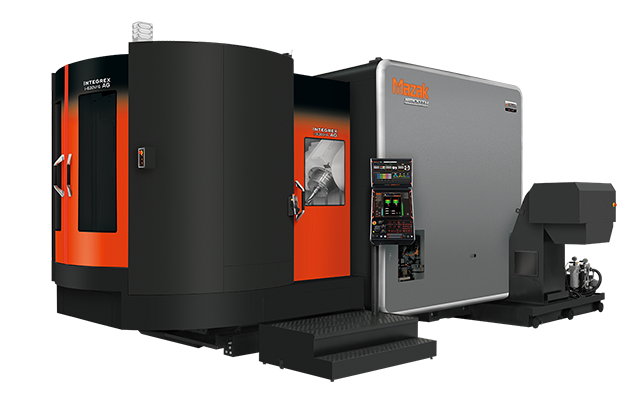

The INTEGREX AG series perform turning, milling, 5-axis machining and gear machining

Three gear machining methods - gear skiving, hobbing, and endmilling - are integrated into this single machine. It meets your production needs, ranging from flexible machining using general-purpose end mills to mass production using specialized tools. Furthermore, gear measurement can be performed in the machine.

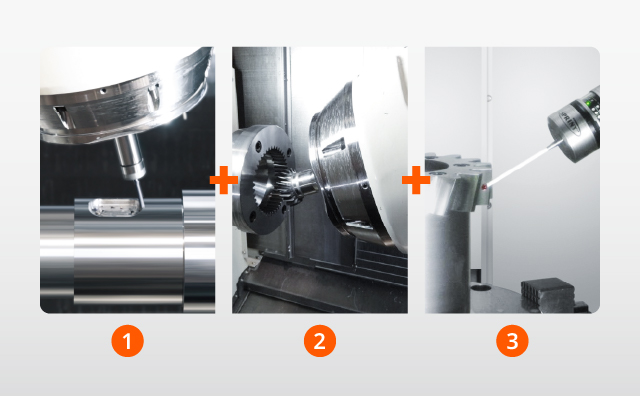

1: |5-axis machining
2: |Gear cutting
3: |Gear measurement

Produce gear without dedicated gear cutting machine

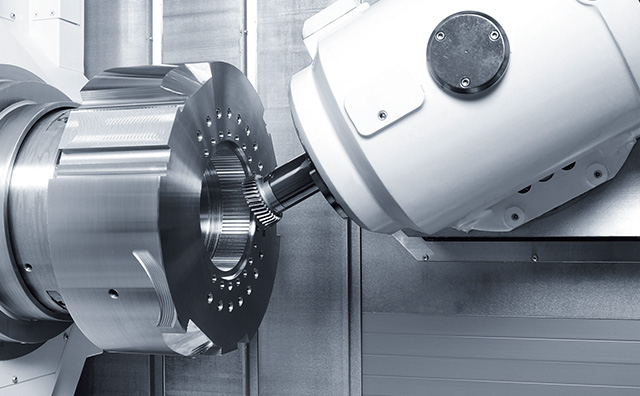

Gear skiving

Gear skiving with small-diameter cutters and carbide cutters

High-accuracy gear skiving by unique control technology of INTEGREX AG
The precision of the rotational synchronization between the turning spindle and milling spindle is maintained even at the maximum rotational speed of each spindle.

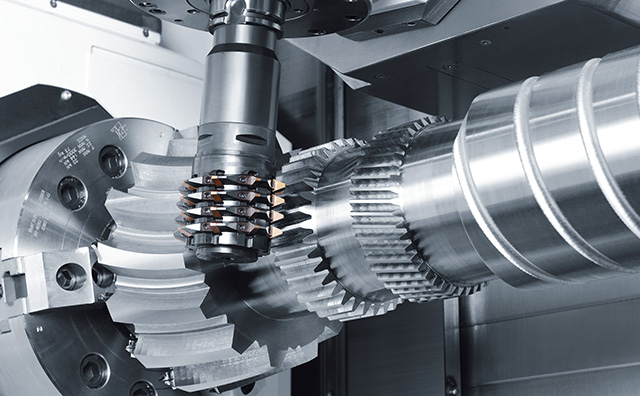

Hobbing

With intuitive settings, gear cutting is performed using dedicated hob cutters. The gear hob arbor supported on just one side provides ISO class 7 machining accuracy. The "Smooth Gear Hobbing" programming support software includes unique features. "Hob Shift" shifts the hob cutter machining point for each pass to extend the tool life and "Micro Geometry" modifies the point where the gear teeth meet after machining.

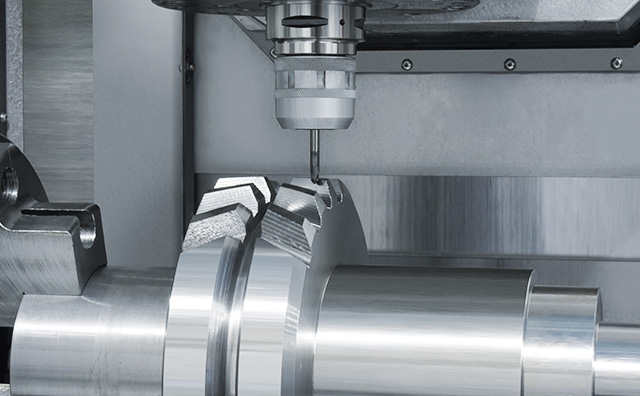

Endmilling

You can use commercially available end mills. Using the dedicated software "Smooth Gear Milling", gear teeth can be cut one by one with a standard end mill. The "Tooth Profile Correction Function" and "Tooth Lead Correction Function" modify the machined gear teeth. The functions provides ISO class 5 (former JIS class 1) machining accuracy.

In-process time reduction

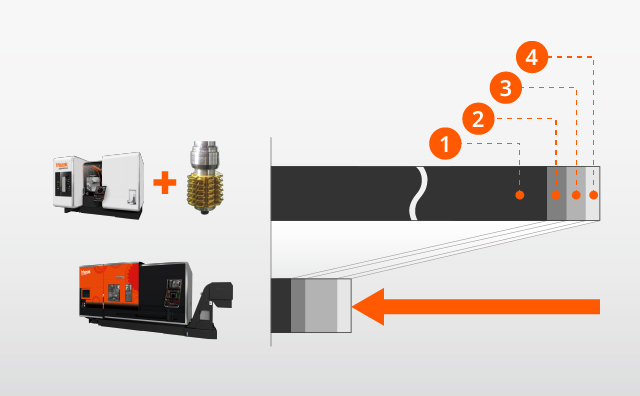

Comparison of hobbing by multi-tasking machine and endmilling by INTEGREX AG

In the case of parts machining for high-mix, low-volume production, the specialized tools such as hob cutters requires a lot of time just to prepare the tools and jigs. INTEGREX AG can machine a wide variety of gears with commercially available end mills, thus significantly reducing manufacturing lead times.

1: Preparation of tools and jig

2: Programming

3: Gear machining

4: Machining

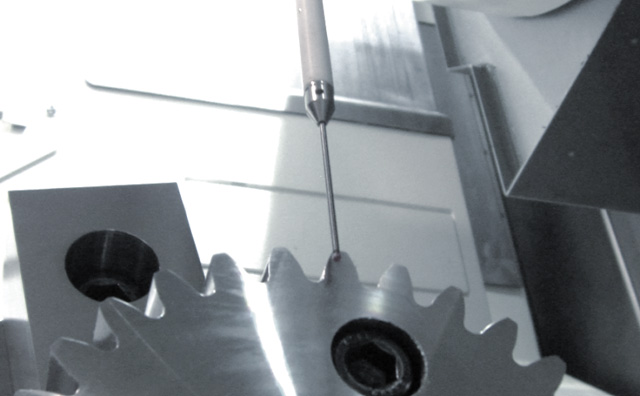

Gear tooth location for in-phase positioning of other machined features

Gear tooth radial in-phase location

After gear skiving or hobbing, the center angle of the gear tooth groove is identified. Based on the identified phase angles, the machine can be automated up to keyway machining, drilling, and deburring with a ball endmill. The central angle of the gear tooth groove is identified on the end face or tip circle while determining the presence or absence of teeth. The actual identification accuracy is 0.005 degrees (16 μm on a 360 mm diameter circle). The probe posture and probe feed direction without interference can be set according to the shape of the target workpiece and the stylus contact points.

Gear face scanning is optionally available. Visualize the machined gear face by measuring the gear profile and lead.

Gear profile and gear lead measurement*

The gear profile and gear lead are measured immediately by attaching the scanning probe after machining.
The number of setups required for transporting the machined workpiece to the 3D measuring machine for inspection, and then back to INTEGREX for additional machining, is reduced.
The measurement results are displayed on the MAZATROL SmoothAi display, and the gear tooth surface can be viewed.

* Option

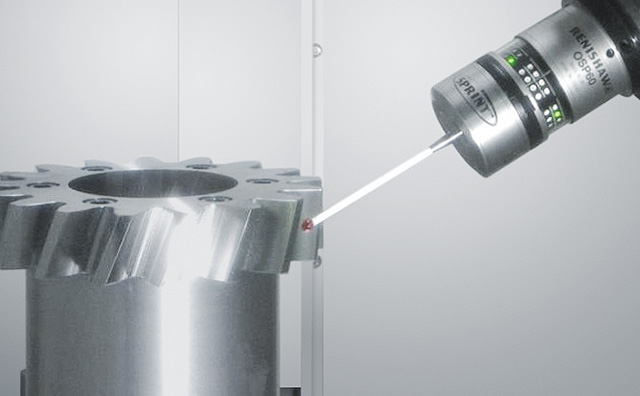

Gear tooth surface measurement with scanning probe

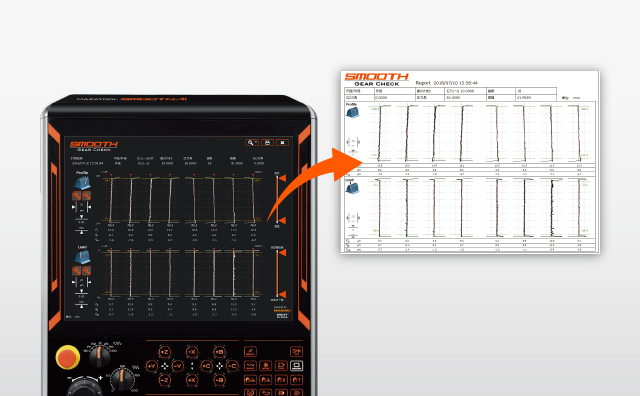

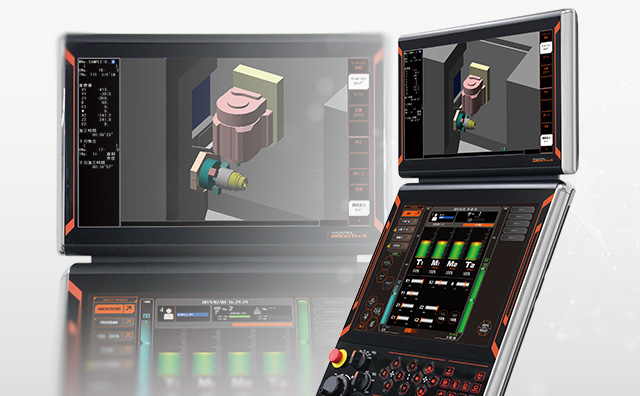

MAZATROL SmoothAi displaying measurement results
Measurement results on the CNC display can be output as an image (PNG file) with a single touch.

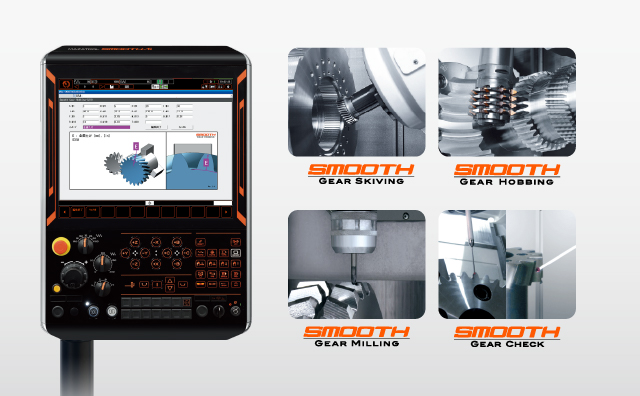

Conversational programming for high-accuracy gear cutting and measurement

Programming are created easily and quickly by simply setting up the various parameters and feedrates indicated in the drawings while viewing graphical guidance. This supporting software creates dedicated G-code programs, and further generates machining and measurement paths automatically. Gear cutting and measurement are performed by pressing the cycle start button.
