X-axis linear motor driven traveling column Vertical machining centers
  • Equipped with BT40 high-speed, high-power spindle for high-speed machining of non-ferrous materials
  • Traveling column and X-axis linear motor enables high-speed feedrate of long stroke.
  • Fixed long table provides exceptional versatility, such as long workpiece machining, multiple workpiece setups, 2-pallet changer type operation
  • Equipped with touch screen CNC system MAZATROL SmoothG

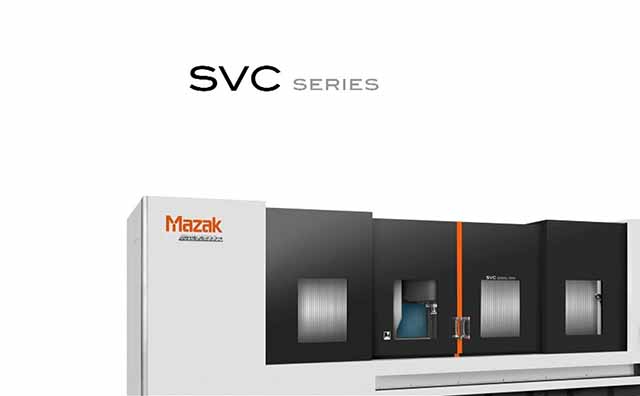

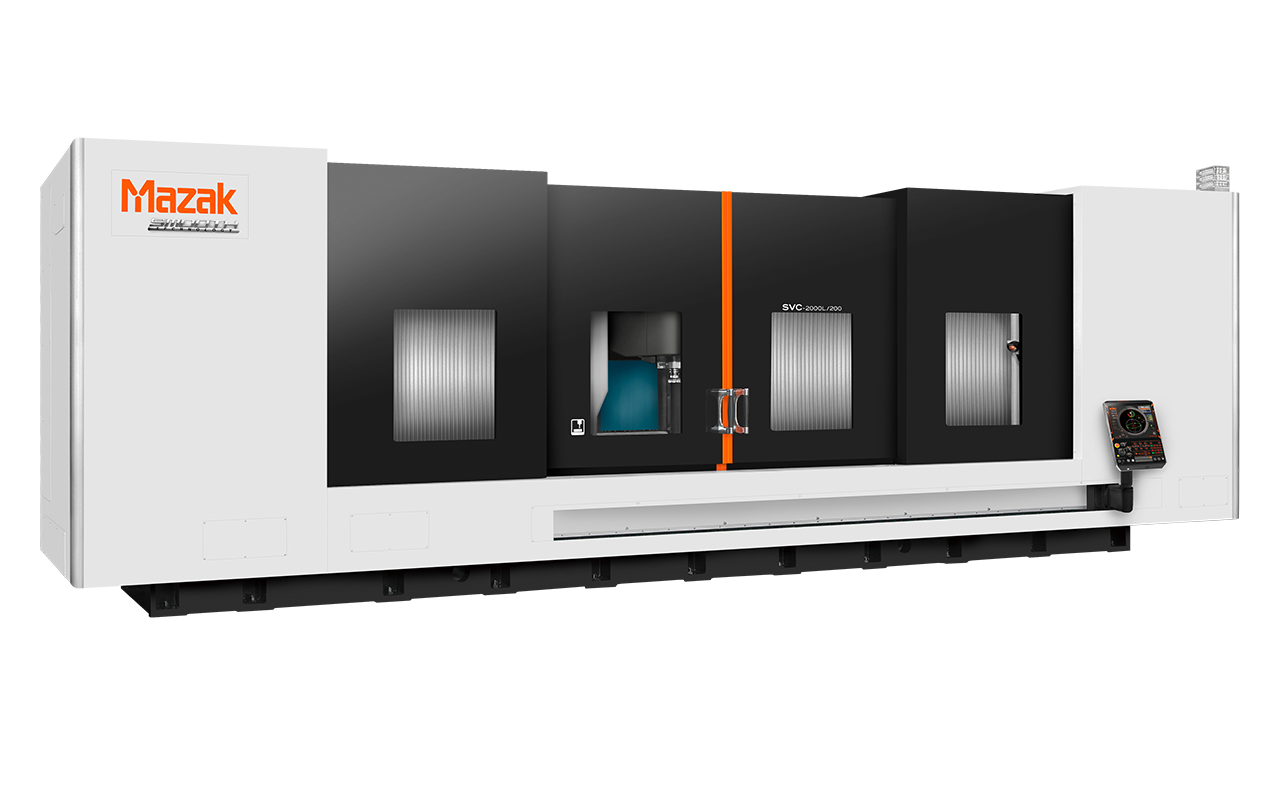

Panoramic view of SVC

Highly efficient machining of long workpieces

Equipped with BT40 high-speed, high-power spindle for high-speed machining of non-ferrous materials

The standard spindle is a high-speed, high power spindle with a revolution speed of 15000 min-1 and an output of 22 kW. 25000 min-1 HSK-A63 spindle is also available as an option.

Image of spindle cutting at high speed

Linear motor provides high speed, high accuracy machining

X-axis linear motor

High-speed feedrate with rapid traverse of 120 m/min and cutting feed of 30 m/min. Machining is performed quickly with high positioning accuracy, even with long strokes. It improves productivity by reducing idling time and positioning time for long workpieces and multiple-workpiece machining.

Fixed long table provides exceptional versatility

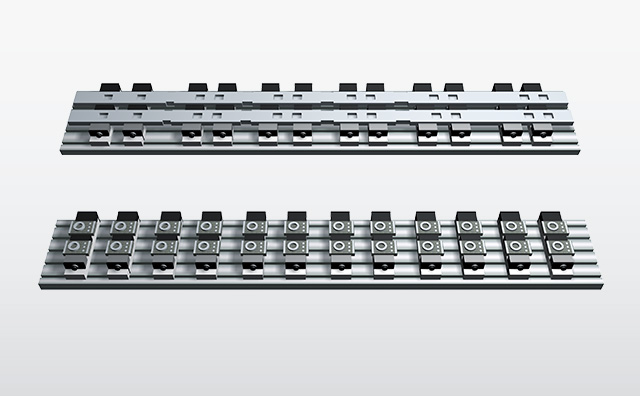

Long table provides exceptional versatility, such as long workpiece machining, multiple workpiece setups, 2-pallet changer type operation. Large, long workpieces can be machined - even those that overhang the large stationary table.

Table size

2000L/120 : 3400 mm × 510 mm

2000L/200 : 5400 mm × 510 mm

Example images of processing Large & long workpiece・Workpiece overhanging the table
Example images of processing Multiple parts setup

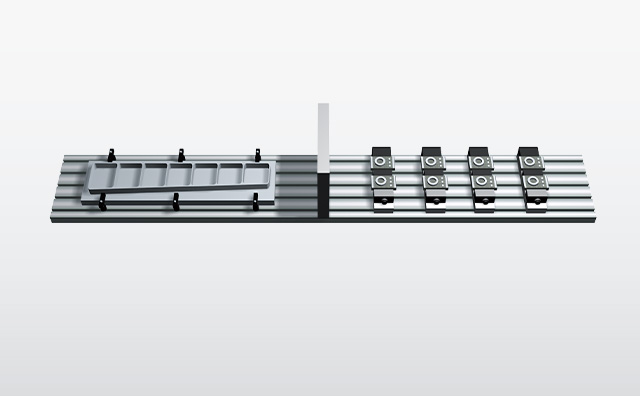

Example images of processing 2-pallet changer type operation by center partition (option)

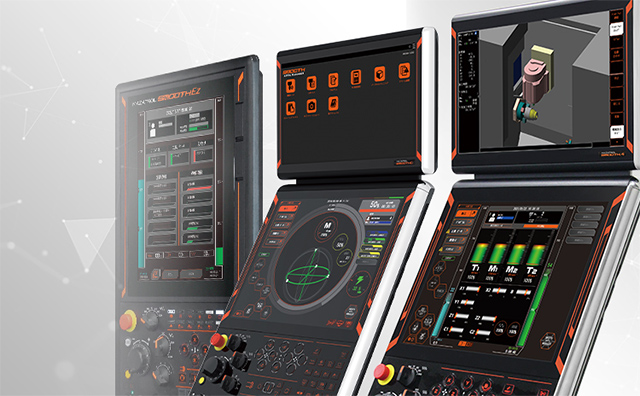

Equipped with touch screen CNC system MAZATROL SmoothG

MAZATROL SmoothG is a CNC system with a graphical user interface and touch screen for easy operation. It is equipped with a variety of functions that help reduce programming time and improve machining efficiency.

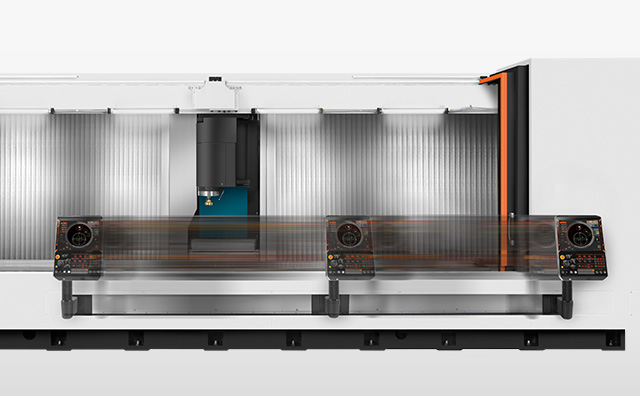

Screen operation while checking workpieces inside the machine

Operation touch panel can be tilted to the optimum position for any operator's height to ensure ease of operation.

Image showing the ability to operate the screen while checking workpieces inside the machine

Support for programming and machining

QUICK MAZATROL QUICK MAZATROL

MAZATROL interactive programming uses conversational language and it is easy to make / edit programs by inputting data on workpiece drawings in response to questions displayed on the operation screen. Even inexperienced operators can create programs quickly.

SMOOTH MACHINING CONFIGURATION SMOOTH MACHINING CONFIGURATION

Machining features including cycle time, finished surface and machining shape can be adjusted by slider switches on the display according to material requirements and machining methods.

Pocket milling cycle Pocket milling cycle

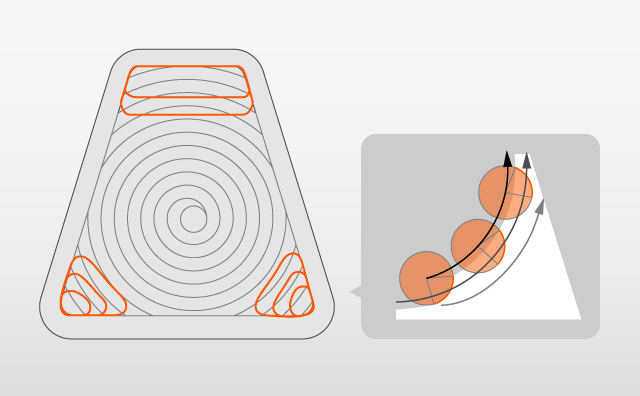

This function maintains a constant angle of engagement between the cutter and material to create a high efficiency tool path during pocket milling. It reduces chip load variation, extends tool life and allows tools to be used to their full potential.

SVC

SVC-2000L/120
Tool shank (standard)BT40
Max. spindle speed15000 min-1 (rpm)
Table size3400 mm × 510 mm
Machine Specifications
SVC-2000L/200
Tool shank (standard)BT40
Max. spindle speed15000 min-1 (rpm)
Table size5400 mm × 510 mm
Machine Specifications
